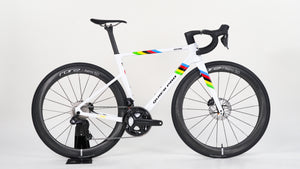

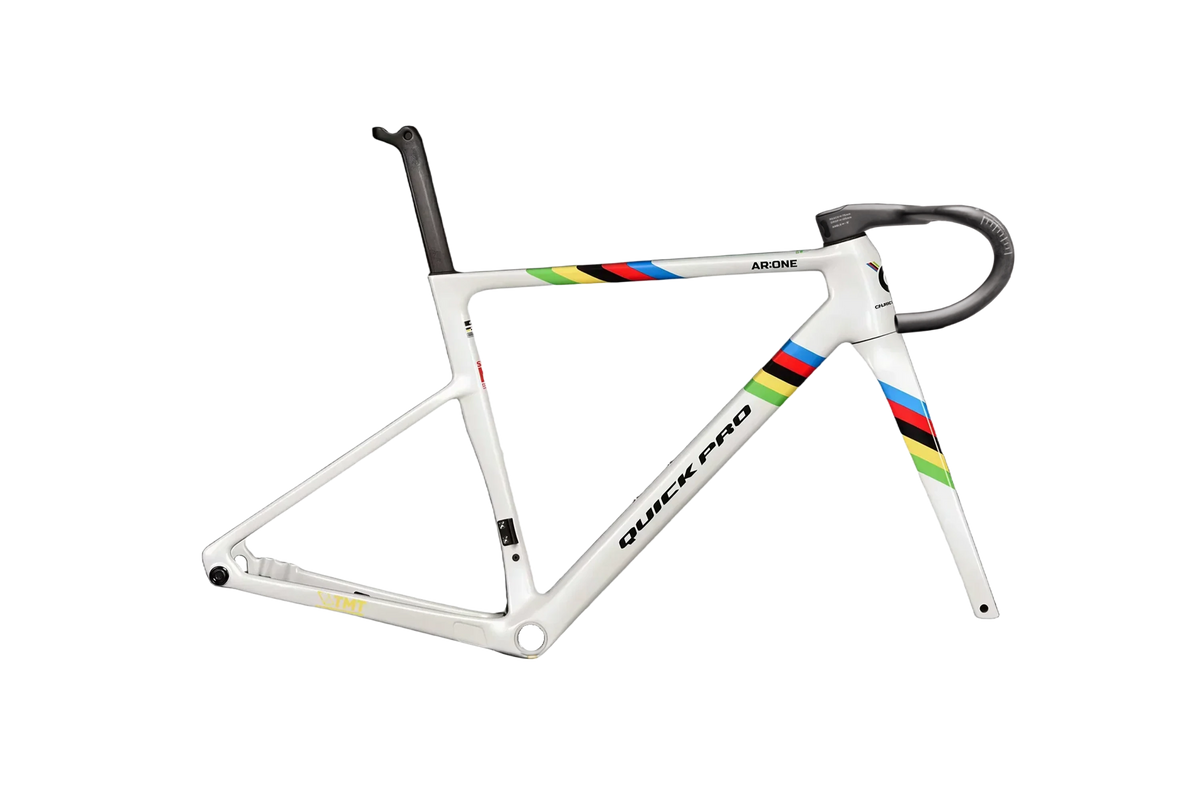

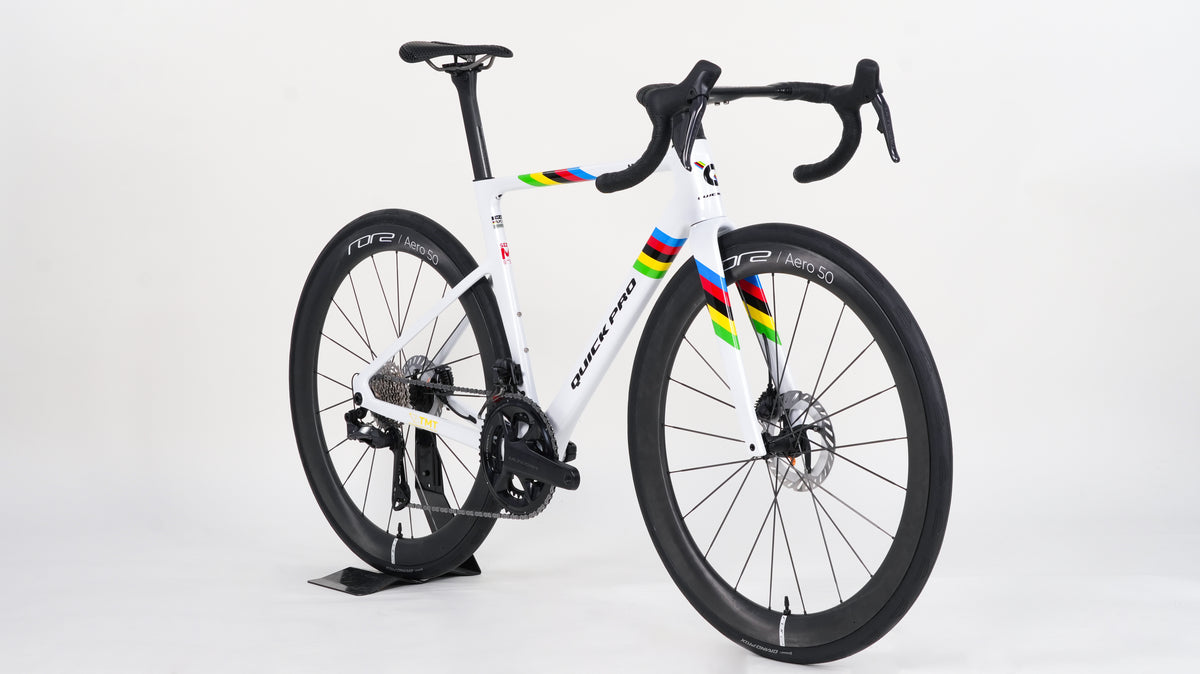

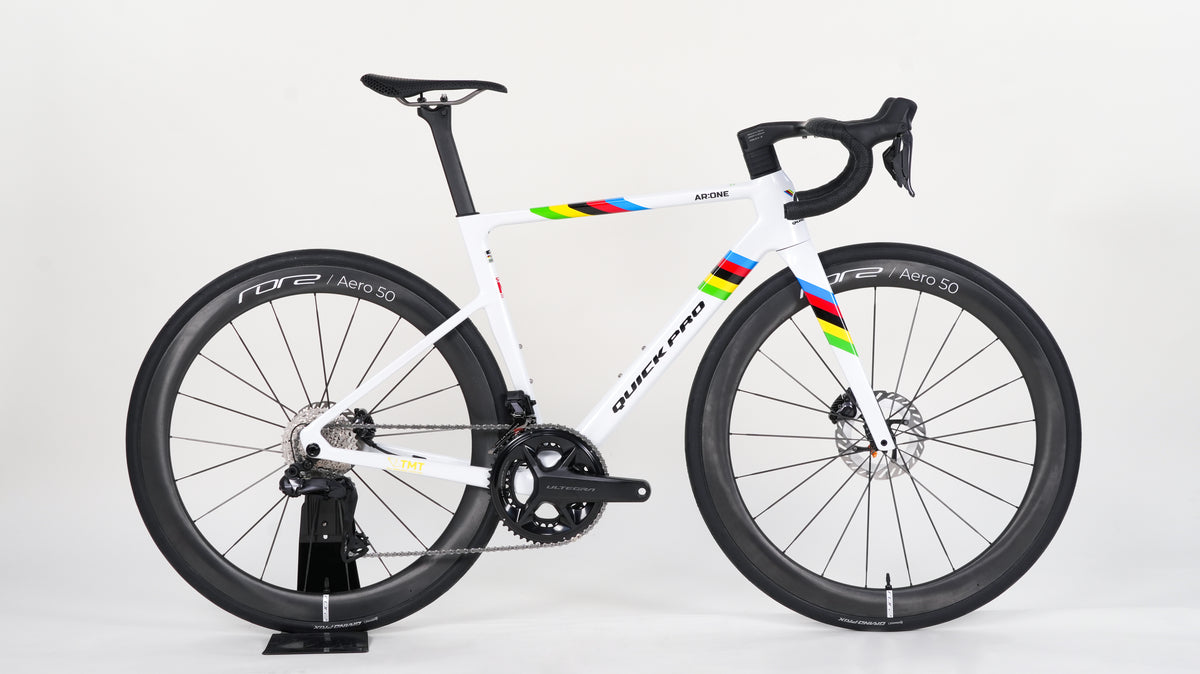

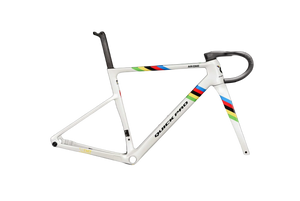

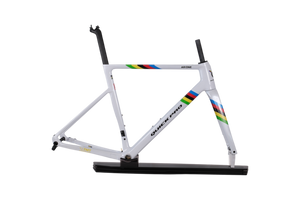

Quick Pro AR:ONE Frameset

€2.099,00

The AR:ONE is Quick Pro's all-round race frameset — Stiff where it counts, compliant where it matters.

Color: UCI White

Pre-order - usually fulfilled in 3 weeks:

Production time: 3–5 business days
Estimated delivery to our warehouse: 2–3 weeks

Pickup currently unavailable at RAZL Groningen NL Warehouse

Fast and secure delivery

14 days return

2-Year Warranty

From the manufacturer:

TESTED TO PERFORM

Quick Pro delivers unmatched rider safety by utilizing German Zedler Test Standards, which are strictly more rigorous than standard ISO requirements. Every Quick Pro model undergoes extreme benchmarks, such as the 100 kg Seat Stay Fatigue Test and Front Fork Impact Tests, to ensure structural integrity under loads that far exceed normal use. By incorporating X-Ray Inspection to detect hidden internal flaws, Quick Pro provides a superior safety buffer, guaranteeing that your bike is engineered to handle the most demanding real-world conditions.

KEY FEATURES

Ultralight & Ultra-
Stiff Construction

Constructed using True Full Monocoque technology with zero post-mould bonding, the AR:ONE weighs 799g ready-to-ride (Size M). The T1100 + M65 high-modulus carbon layup provides an exceptional stiffness-to-weight ratio, ensuring every watt of power translates into forward motion.

All-Round
Race Geometry

Designed with aggressive geometry and unrivalled stiffness, the AR:ONE balances performance across all race types—from climbing stages exceeding 10,000 meters of elevation to explosive 2,000+ watt sprints. Every tube profile was optimized through wind-tunnel verified CFD analysis for versatility without compromise.

UCI Pro-
Proven Performance

Tested and raced by the Ferei Quick-Panda Podium Mongolia Team, the AR:ONE has secured multiple victories in international UCI races. This frameset is UCI Approved and represents the platform chosen by professional racers who demand absolute performance.

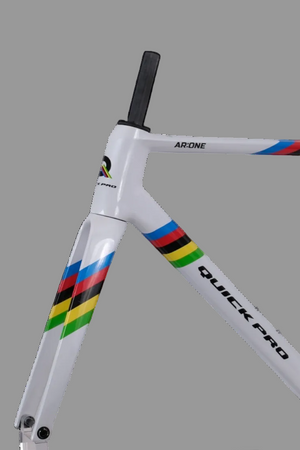

Frame & Fork

ModelAR:ONE
MaterialT1100 & M65 High-Modulus Carbon
ConstructionTrue Full Monocoque
Frame weight (M size)~799g ±5% (including paint & accessories)
Fork weight (M size)~399g ±5% (including paint & accessories)
Headset bearing52x52mm
Tire clearance700×32c
Thru-axleF/100×12mm R/142×12mm
Maximum rider weight120kg
Bottom bracketBSA Threaded (68mm)
HangerUDH

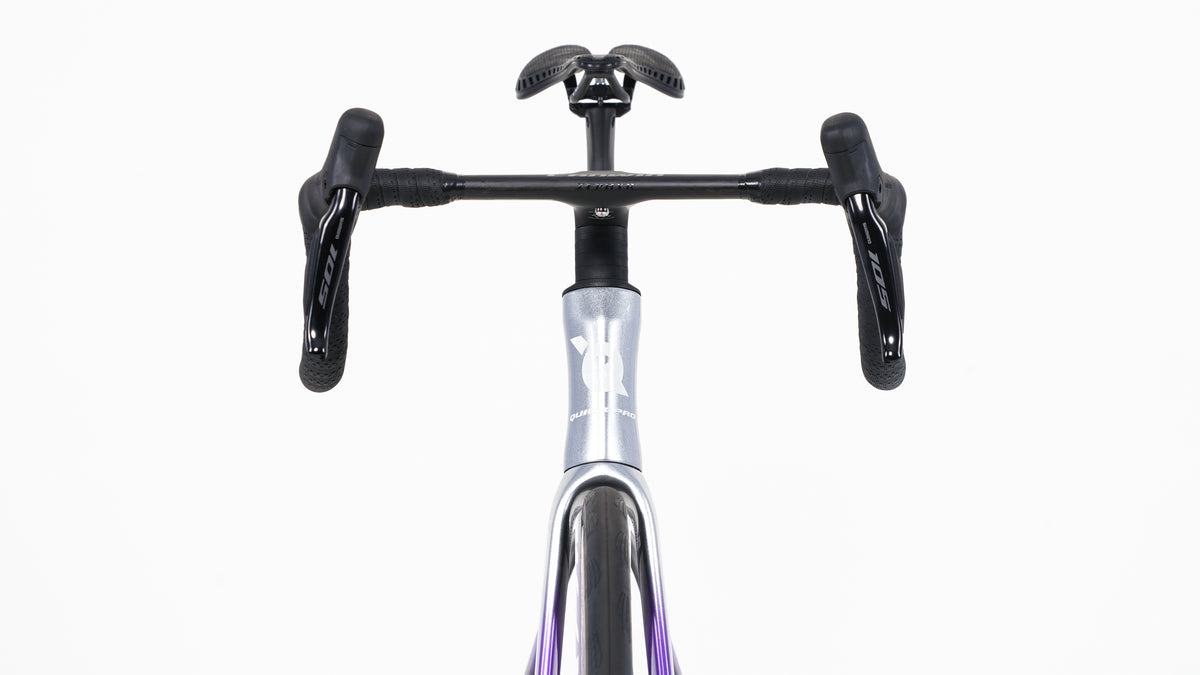

Handlebar

ModelCANWIN ZEPHYR SSL
Weight (400-100)288g ±3%
ConstructionOne-piece monocoque
Cable routingFully internal
Steerer tubes28.6mm
Flare Angle6.1°
Flare26.5mm
Reach75mm
Drop125mm

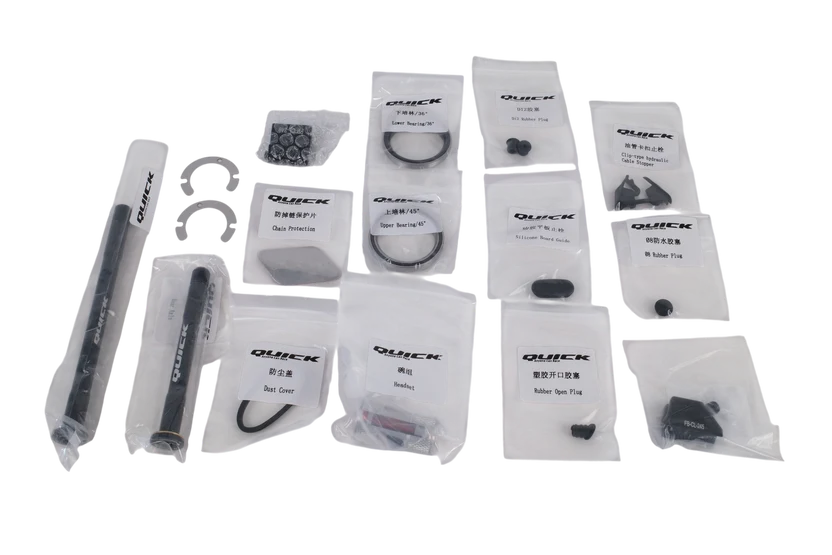

AccessoriesComputer mount

Seatpost

Offset0/15/20mm
LengthN/A
Weight (w/ clamp)~175g
Max Torque10Nm
Compatible railAlloy and carbon

Size & Geometry

Size	Recomended height
XS (430)	155cm - 165cm
S (460)	163cm - 173cm
M (490)	170cm - 180cm
L (520)	178cm - 188cm
XL (550)	185cm - 193cm
XXL (580)	190cm+

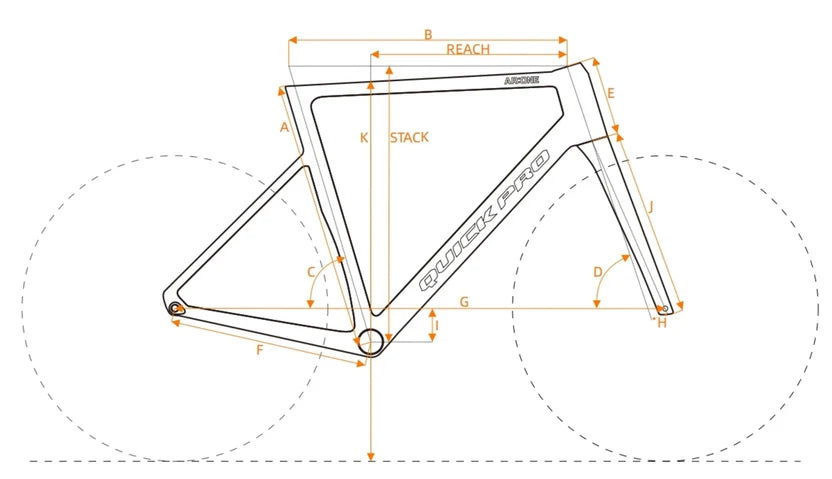

Ref	Specification	XS - 430	S - 460	M - 490	L - 520	XL - 550	XXL - 580
A	Frame Size / Seat Tube Length (mm)	430	460	490	520	550	580
B	Effective Top Tube Length (mm)	510	525	540	555	570	589
C	Seat Tube Angle (°)	75	74.5	74	73.5	73.5	73.5
D	Head Tube Angle (°)	70	71	72	73	73	73.5
E	Head Tube Length (mm)	105	115	130	145	160	180
F	Chainstay Length (mm)	408	408	408	408	408	408
G	Wheelbase (mm)	982	984.5	986	987	1002	1013.7
H	Fork Offset / Rake (mm)	50	50	45	45	45	45
I	Bottom Bracket Drop (mm)	72	72	72	72	72	72
J	Fork Length (mm)	370	370	370	370	370	370
K	Standover Height (mm)	711	736	762	787	813	837
—	Stack-to-Reach Ratio (STR)	1.34	1.35	1.38	1.41	1.41	1.43
—	Reach (mm)	375	382	387	391	402	412
—	Stack (mm)	504	517	535	552	567	588

Latest stories

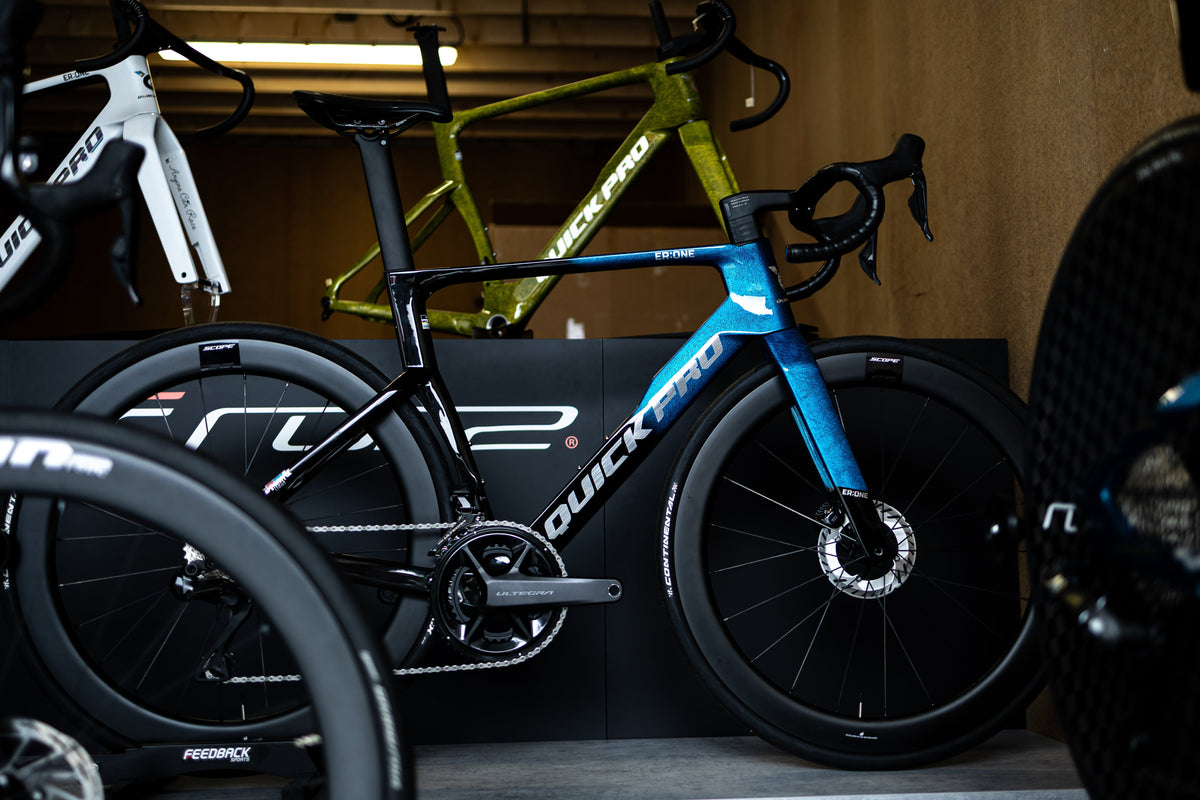

Story between Quick Pro & RAZL.cc
