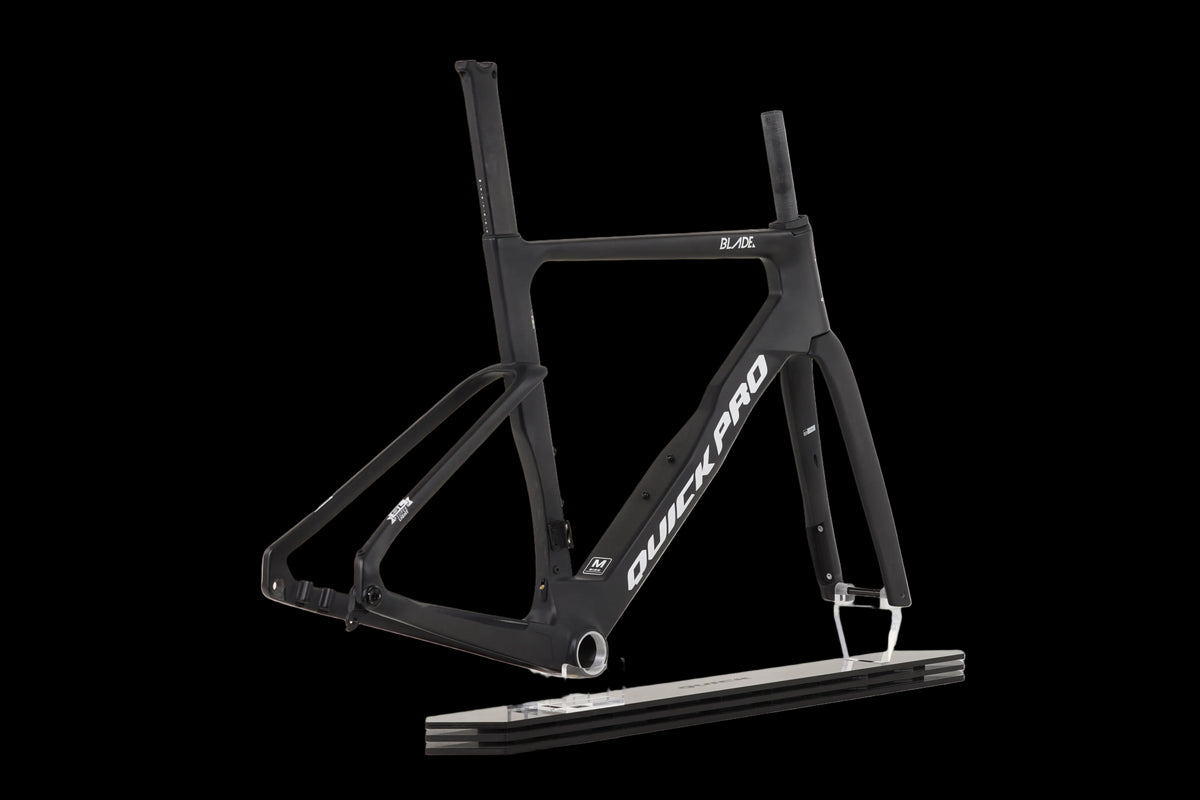

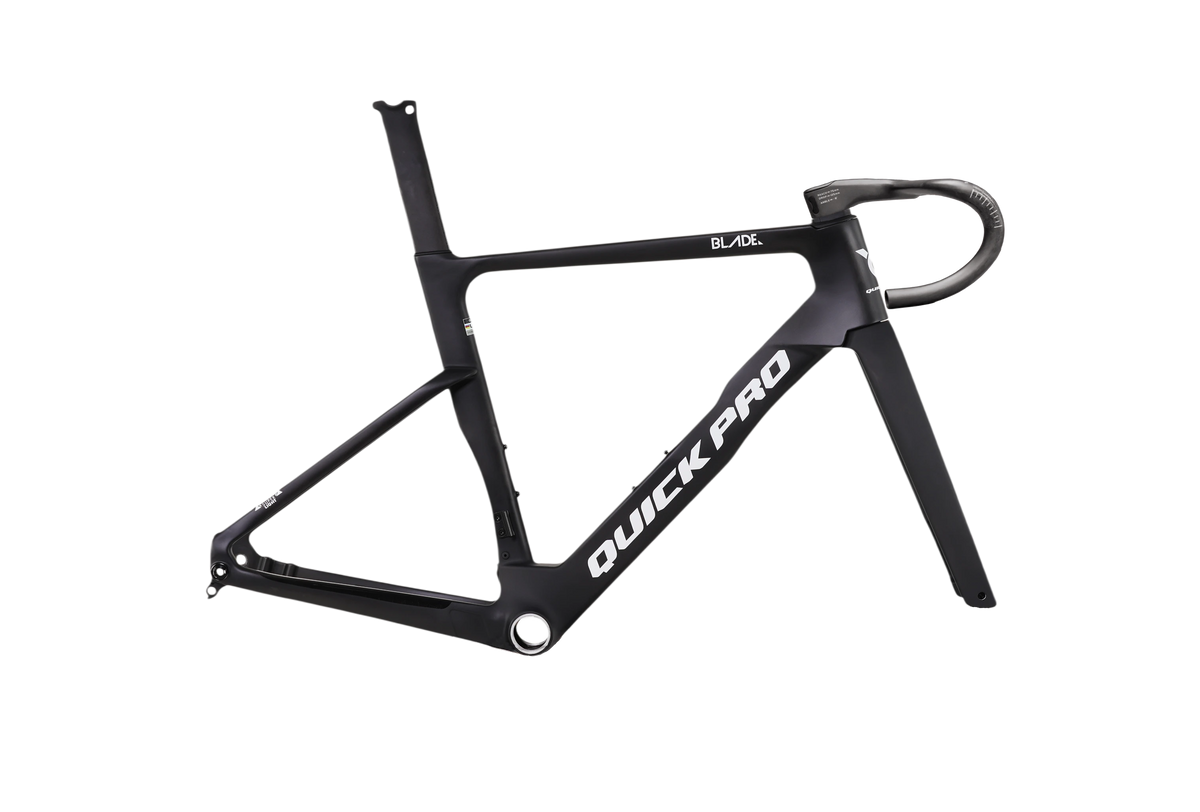

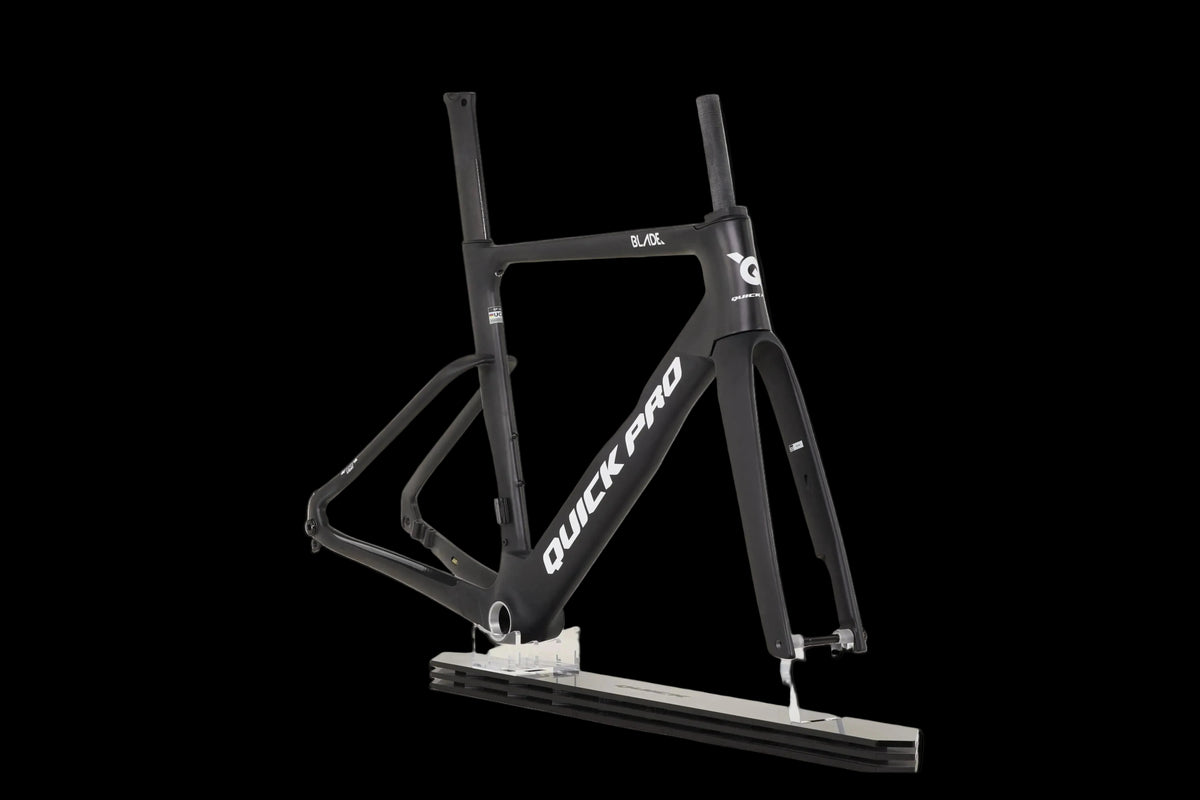

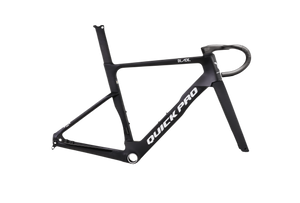

Quick Pro BLADE Frameset

€1.699,00

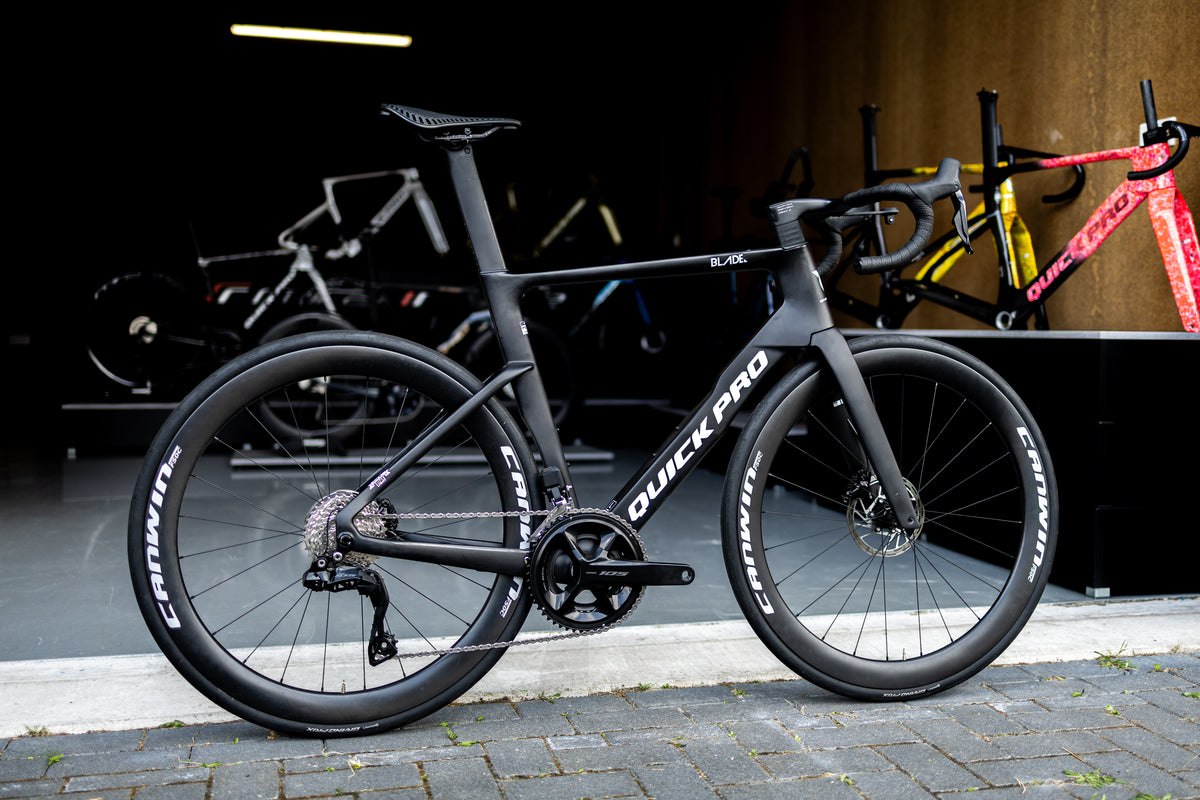

The BLADE is Quick Pro's CFD-engineered aero road machine — built for riders who demand peak aerodynamic performance without sacrificing rigidity or confidence at speed.

Color: RAZL Black Custom Color

Low stock

Pickup available at RAZL Groningen NL Warehouse

Usually ready in 24 hours

Fast and secure delivery

14 days return

2-Year Warranty

From the manufacturer:

Aero Heritage, Everyday Comfort

The Quick Pro Blade is an aero frameset sharing ER:ONE's design DNA, but with T1000 carbon instead of T1100—less stiff, more forgiving on long rides. Its taller stack suits tall riders. The frameset itself is well-regarded, though QuickPro complete bikes have reported QC and service issues.

KEY FEATURES

CFD-Optimized
Aerodynamic Construction

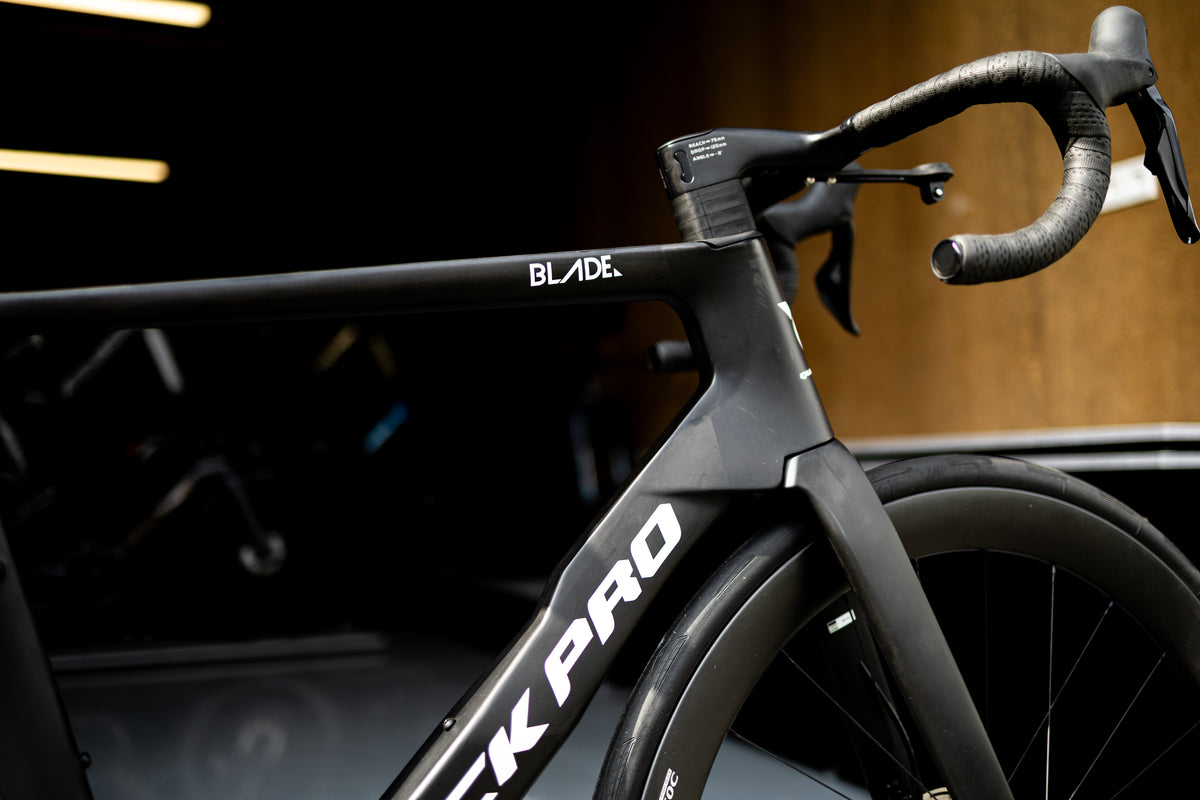

The BLADE's tube profiles are CFD-developed for a narrower, more integrated silhouette. Every shape is optimized to cut frontal drag—delivering a measurable aero edge at speed without sacrificing rigidity.

T1000 & M60
MONOLiTH Carbon Layup

Built with T1000/M60 high-end carbon and MONOLiTH one-piece molding, the BLADE hits a frame weight of ~924g (±5%). Seamless construction skips post-mould bonding for greater rigidity and direct, efficient power transfer on every stroke.

UCI-Approved
Race Geometry

The BLADE is fully UCI approved and designed around an aggressive aero race geometry, making it eligible for competition at the highest levels. Paired with flatmount disc brakes and 12mm thru-axles front and rear, it meets modern performance standards while maintaining the confidence and control needed for high-speed racing and sprinting.

Frame & Fork

ModelBLADE (Gen 2)
MaterialT1000 & M60 High-Modulus Carbon Fiber
ConstructionMONOLiTH One-Piece Molding
Frame weight (M size)~924g ±5% (excluding paint & accessories)
Fork weight (M size)~445g ±5% (excluding paint & accessories)
Headset bearing52x52mm
Tire clearance700×32c
Thru-axleF/100×12mm R/142×12mm
Maximum rider weight120kg
Bottom bracketT47-85.5
HangerUDH

Handlebar

ModelCANWIN ZEPHYR SL
Weight (380-90)339g ±3% (including paint & accessories)
ConstructionOne-piece monocoque
Cable routingFully internal
Steerer tubes28.6mm
Flare Angle6.1°
Flare26.5mm
Reach75mm
Drop125mm
AccessoriesComputer mount

Seatpost

Offset0/20mm
LengthN/A
Weight (w/ clamp)~175g
Max Torque10Nm
Compatible railAlloy and carbon

Size & Geometry

XS (456)	155cm - 165cm
S (486)	163cm - 173cm
M (514)	170cm - 180cm
L (536)	178cm - 188cm
XL (558)	185cm - 193cm
XXL (576)	190cm - 198cm

A technical specification sheet for the Geometry BLADE bicycle frame showing a labeled line drawing of the fork with measurement callouts and a specifications table with dimensions and material data.

Ref	Specification	XS - 456	S - 486	M - 514	L - 536	XL - 558	XXL - 576
A	Frame Size / Seat Tube Length (mm)	456	486	514	536	558	576
B	Effective Top Tube Length (mm)	505	524	542	559	575	593
C	Seat Tube Angle (°)	74.3	74	73.5	73.5	73.3	73
D	Head Tube Angle (°)	71	71.5	72	72.5	72.8	73
E	Head Tube Length (mm)	101.7	117	138	157	175	192
F	Chainstay Length (mm)	410	410	410	410	410	410
G	Wheelbase (mm)	963	976	985	998	1010	1022
H	Fork Offset / Rake (mm)	45	45	45	45	45	45
I	Bottom Bracket Drop (mm)	72	72	72	72	72	72
J	Fork Length (mm)	375	375	375	375	375	375
K	Standover Height (mm)	745	764	786	806	824	841
—	Stack-to-Reach Ratio (STR)	1.41	1.41	1.44	1.45	1.46	1.47
—	Reach (mm)	360	373	380	391	400	409
—	Stack (mm)	509	525	547	567	585	602
