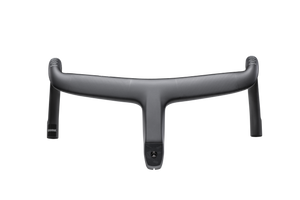

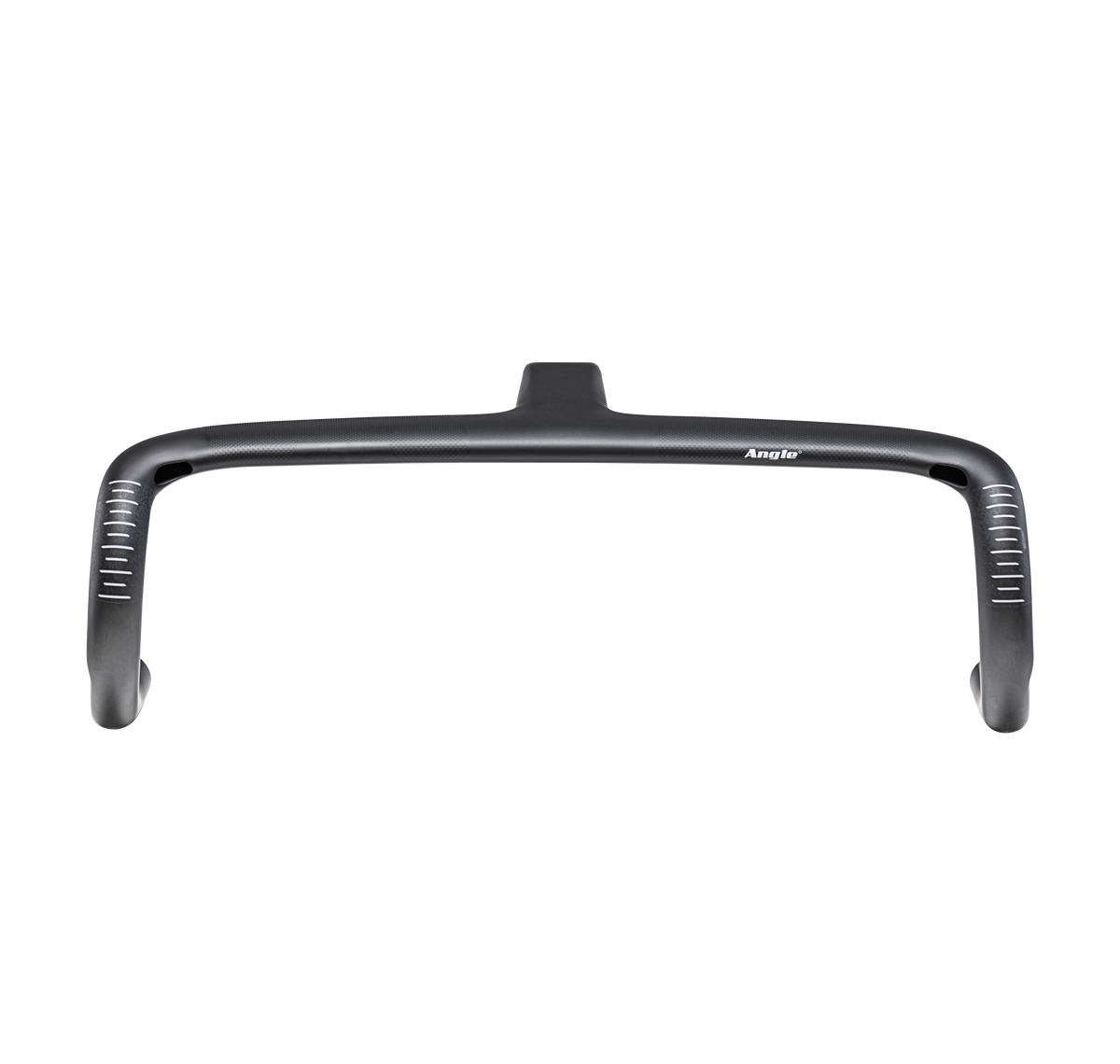

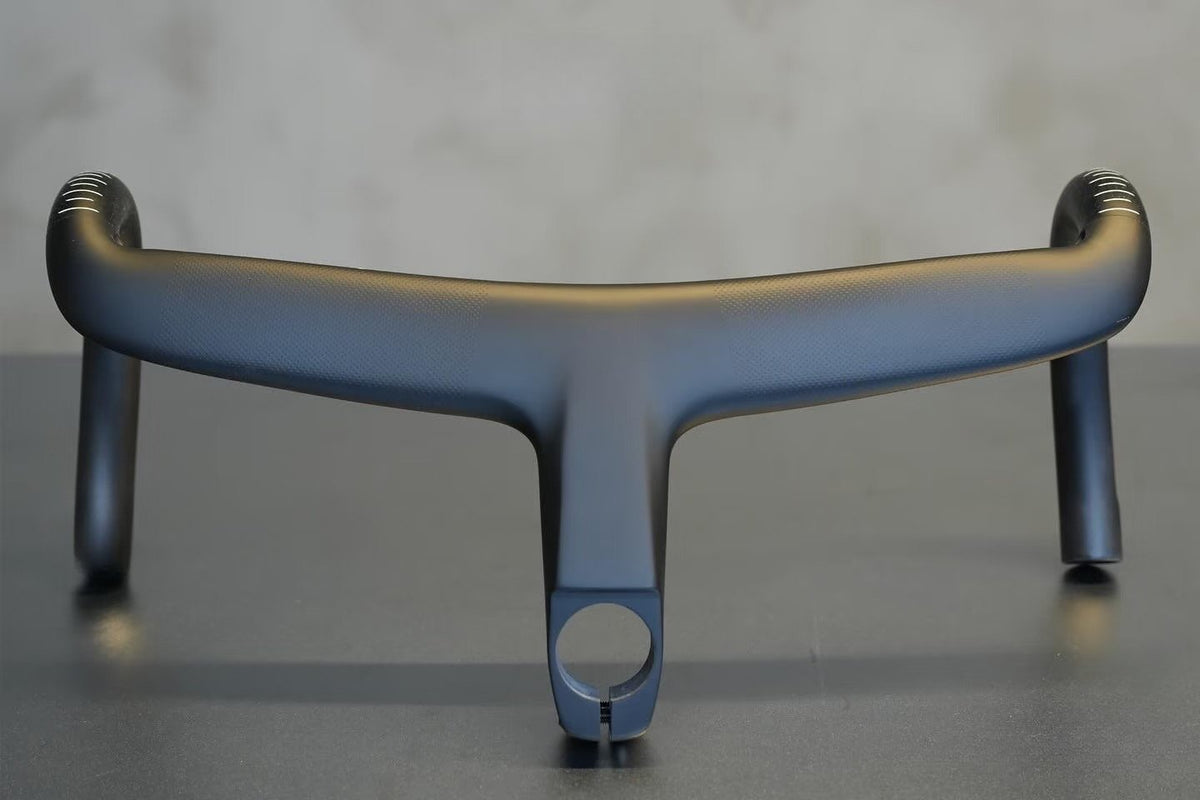

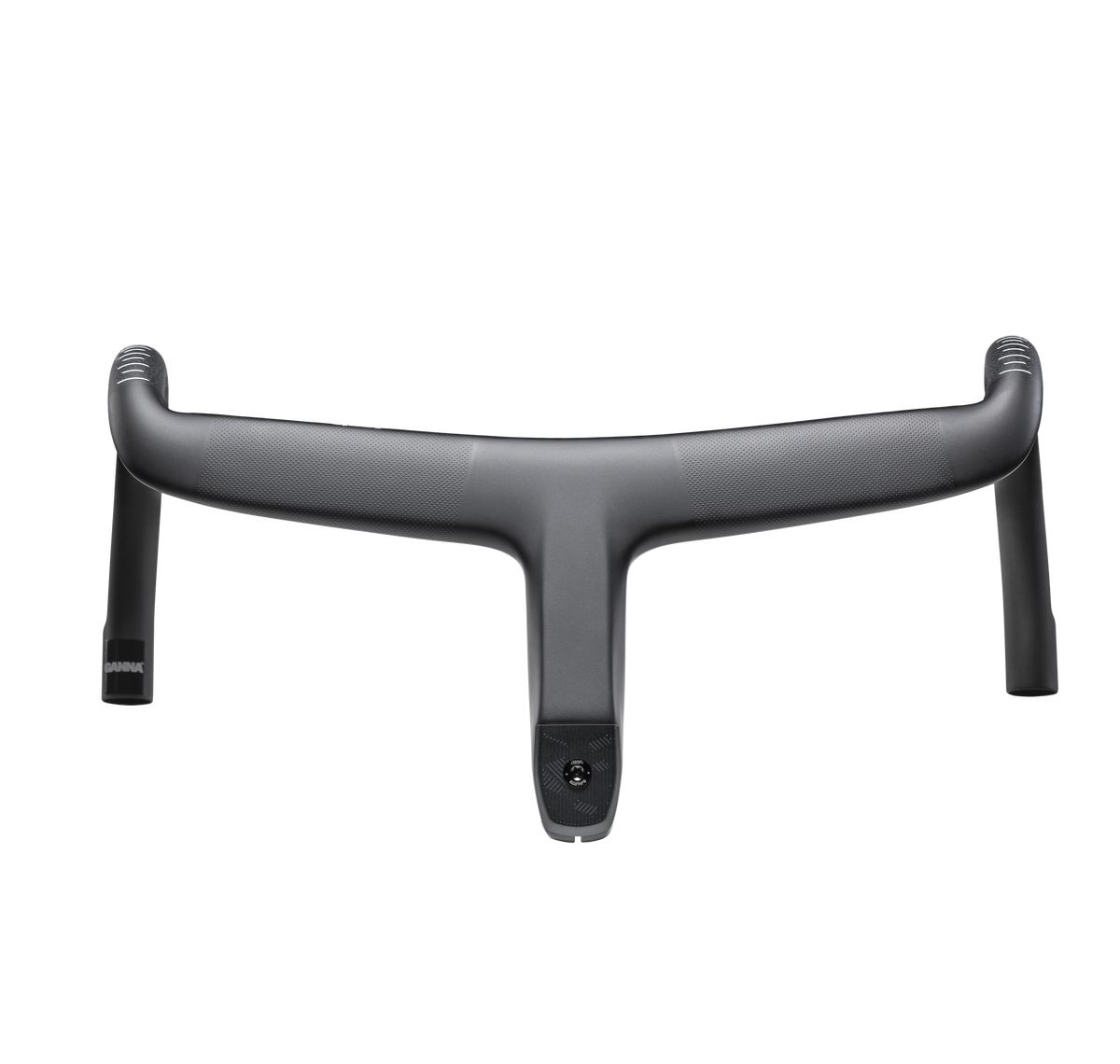

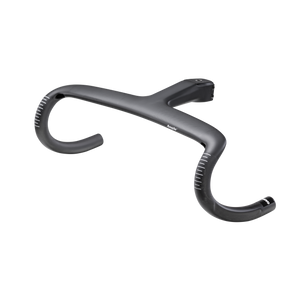

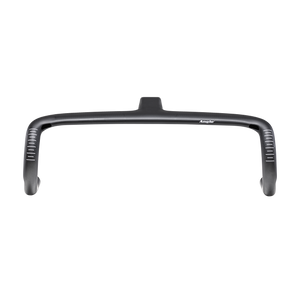

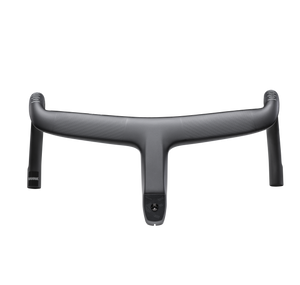

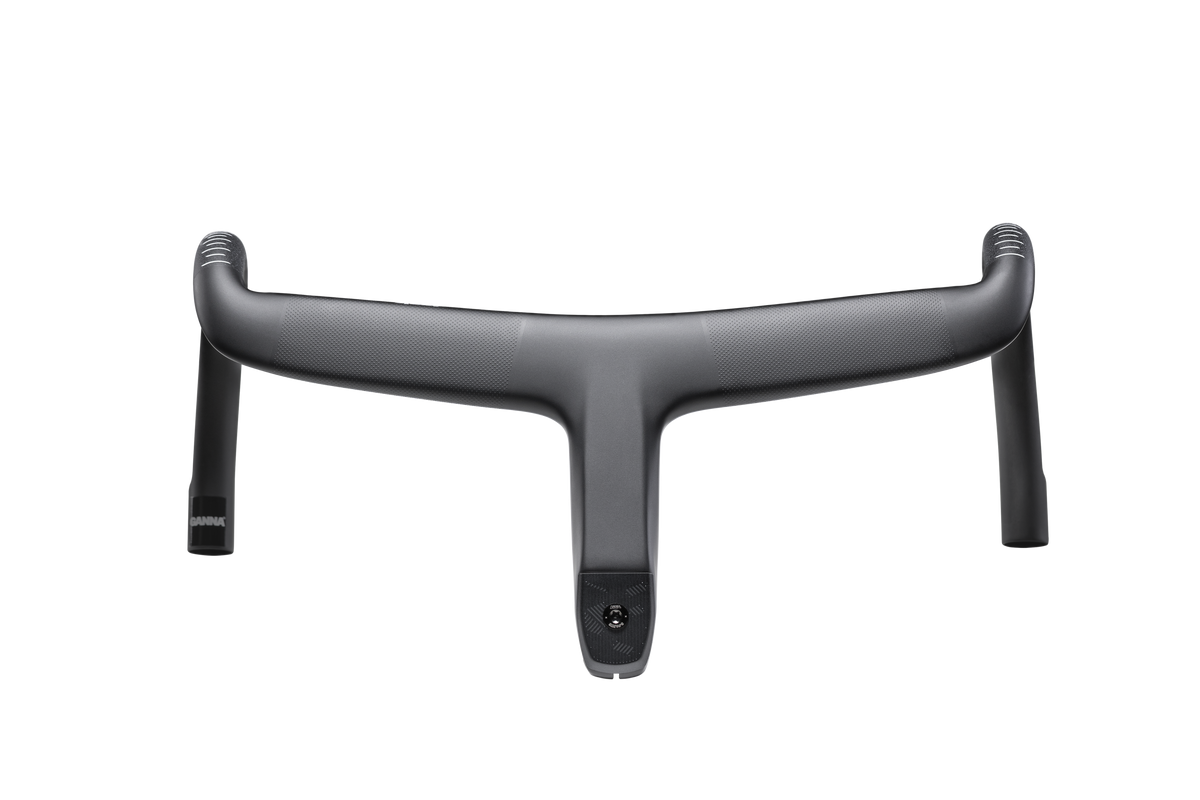

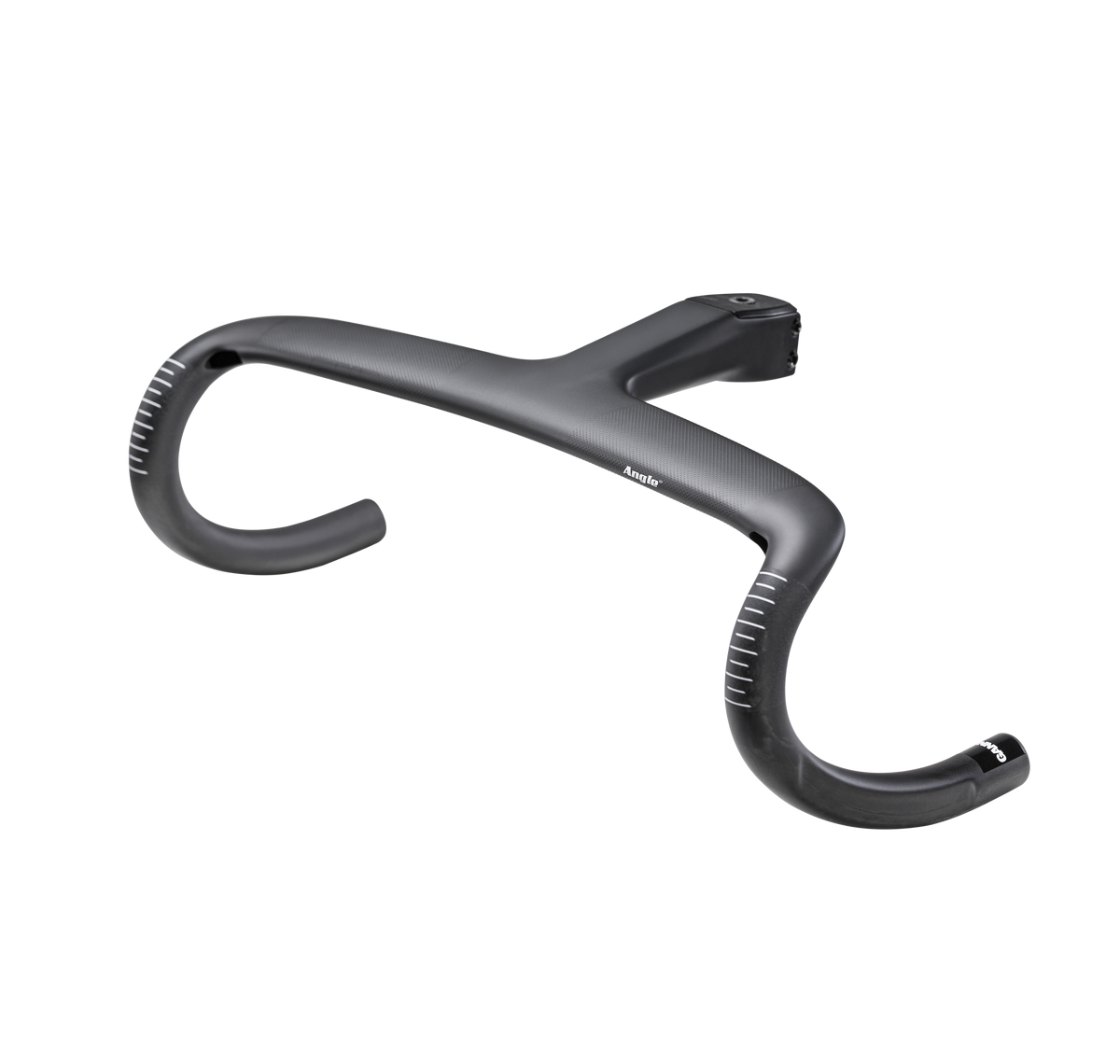

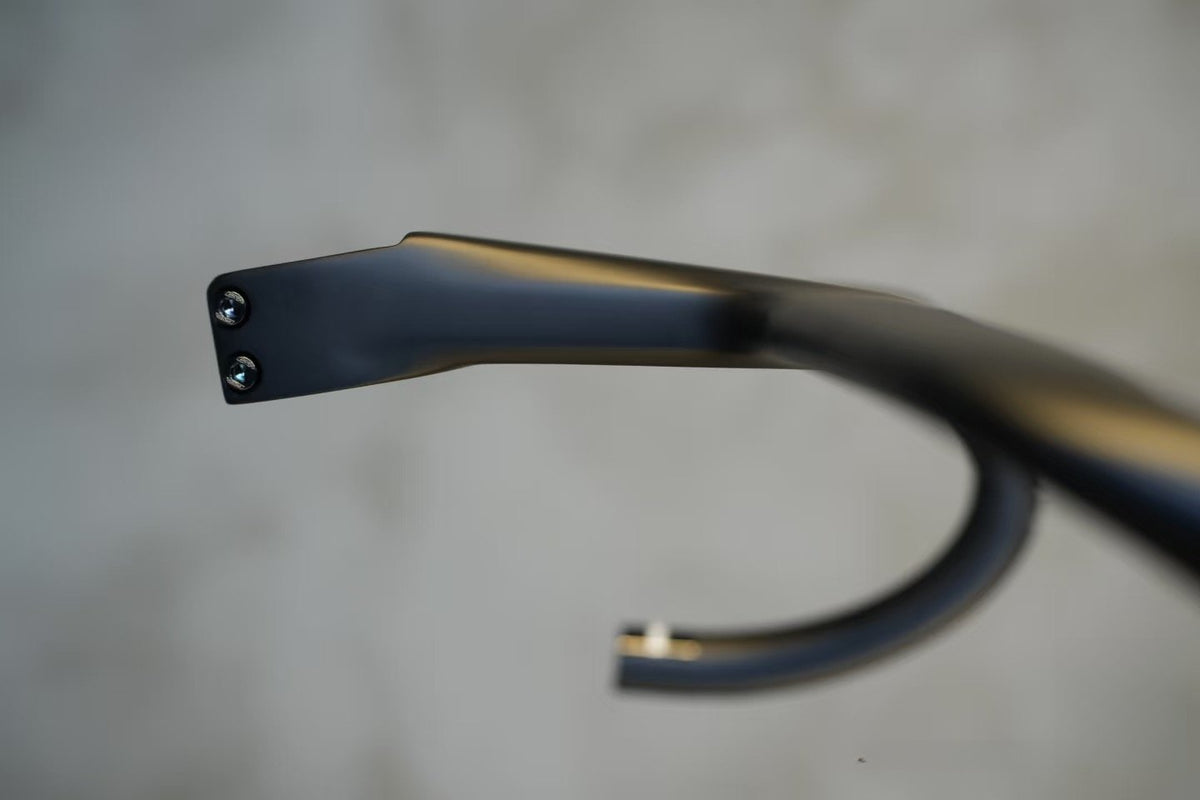

GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
GANNA ANGLE Aero Handlebar
Vendor:GANNA

GANNA ANGLE Aero Handlebar

Sale price €439,00

GANNA's best-selling Angle° , trusted by thousands of riders across races, climbs, and long rides. Solid, good-looking, and dependable: the "no-brainer" choice.

T800&T1000 Carbon Fibre

Size (mm): 360-90
Low stock

Pickup available at RAZL Groningen NL Warehouse

Usually ready in 24 hours

Available locations

GANNA ANGLE Aero Handlebar

GANNA ANGLE Aero Handlebar

Size (mm): 360-90

  • RAZL Groningen NL Warehouse

    Pickup available, usually ready in 24 hours

    Narvikweg 16, C, 9723 TV Groningen, Netherlands

    +31682099999
    Get direction
Fast and secure delivery
14 days return
2-Year Warranty
Buy together with

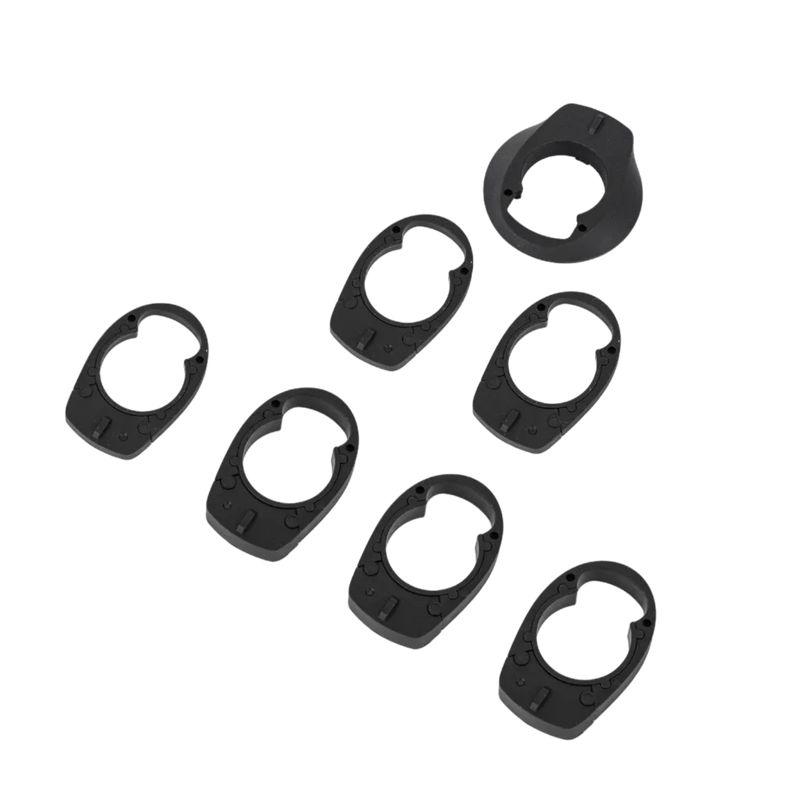

GANNA ANGLE / ANGLE PRO Converter Spacer

GANNA ANGLE / ANGLE PRO Converter Spacer

Sale price€29,00
From the manufacturer:

Ultra-Light, High-Stiffness Construction

A multi-carbon construction combines lightweight performance with structural stiffness. High-toughness T800 carbon provides the primary structure, while ultra-high-modulus T1100 carbon reinforces key load-bearing areas for enhanced rigidity and durability.

KEY FEATURES

Engineered Carbon Layup for Power and Comfort

ANALAY technology precisely tunes carbon reinforcement to balance stiffness, compliance and vibration damping. The engineered layup delivers responsive power transfer while mitigating high-frequency road feedback, helping reduce rider fatigue on extended rides.

30mm Ultra-Flat Aero Stem

Engineered for a clean, integrated front-end with minimal stack height. The ultra-flat 30mm profile extends our flat-design philosophy into the cockpit, creating a sleek silhouette while maintaining the stiffness and stability required for confident handling.

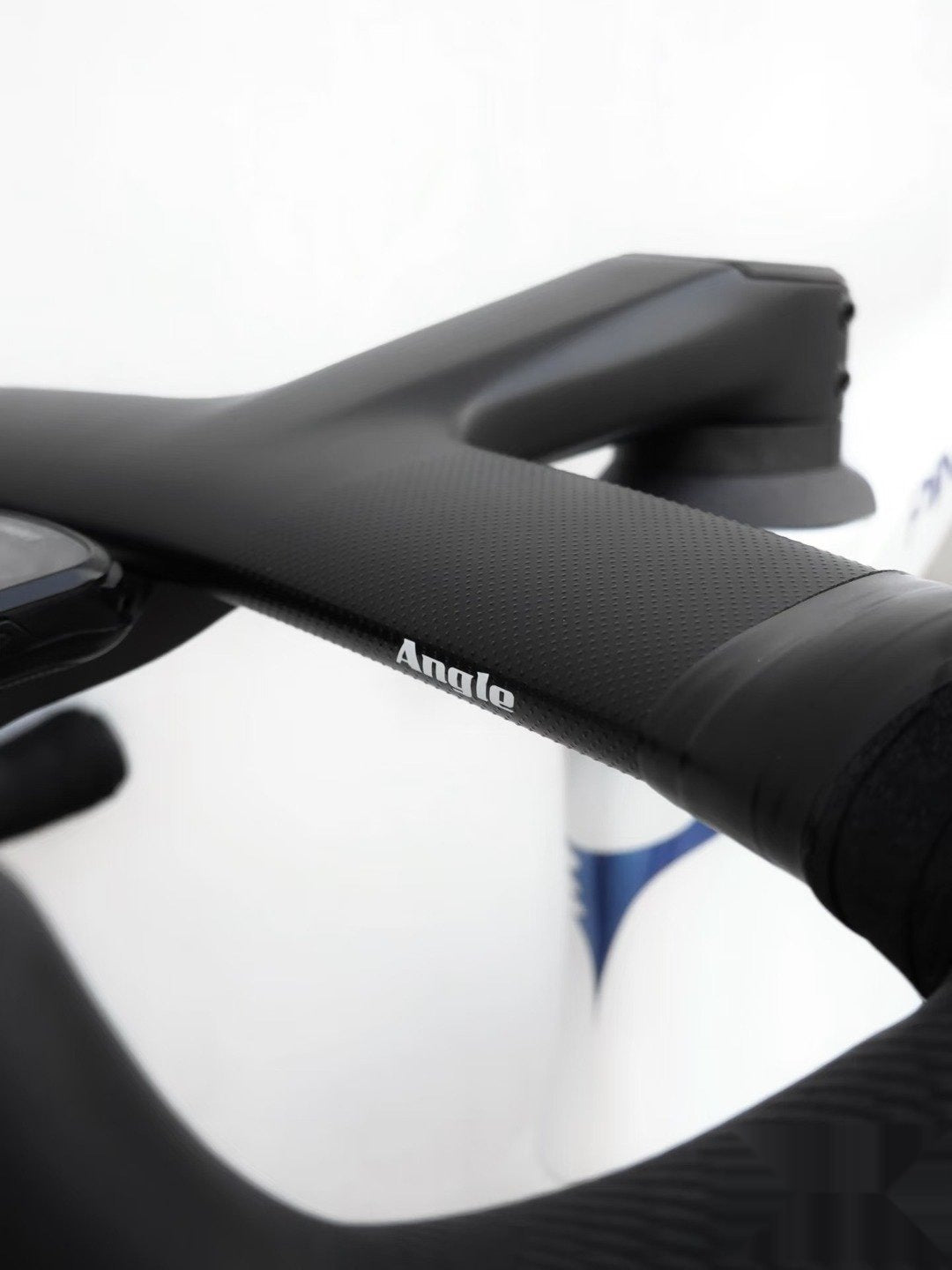

Refined finish. Thoughtfully made.

Every surface is crafted with a smooth matte finish, bringing a clean, refined feel to every detail.
    • MaterialT800 + T1100 carbon fibre composite
    • Weight320g (400mm × 100mm)
    • Reach / Drop71mm / 125mm
    • Drop Flare6.9°
    • Stem Angle-10°
    • Steerer Stack30mm
    • Width OptionsCentre-to-centre
    • Cable RoutingFully internal electronic and mechanical
    • SteererOD2 (1-1/4") with 1-1/8" shim adapter included
    • Safety200,000+ fatigue cycle tested — exceeds ISO 4210

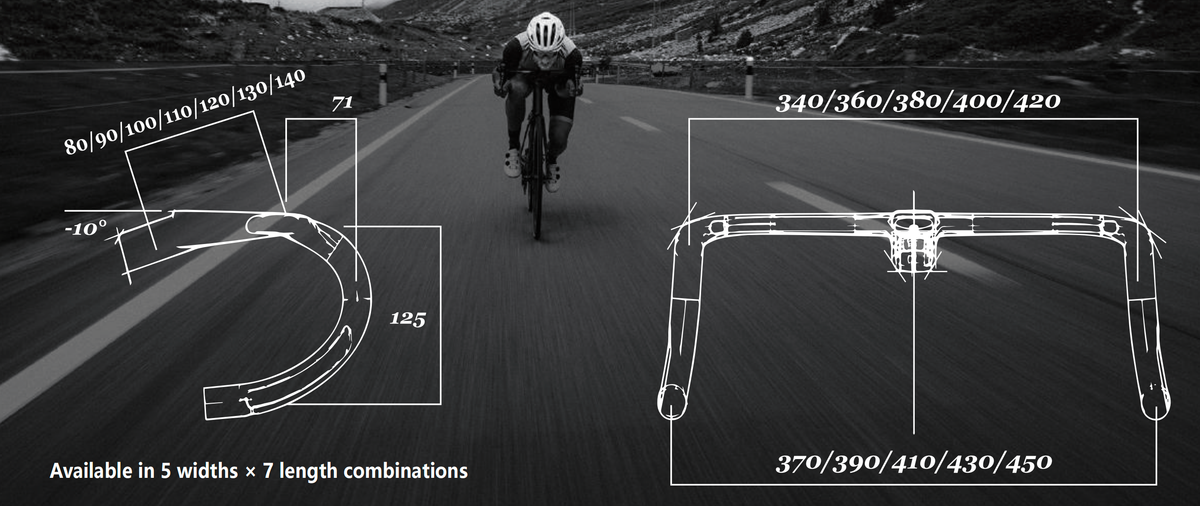

Size & Geometry

Spec. ANGLE
Reach 71 mm
Drop 125 mm
Clamp Ht 30 mm
Weight 320 ± 5 g
Angle -10°
Stack 30
Flare Angle 6.9°
Flare 30 mm
