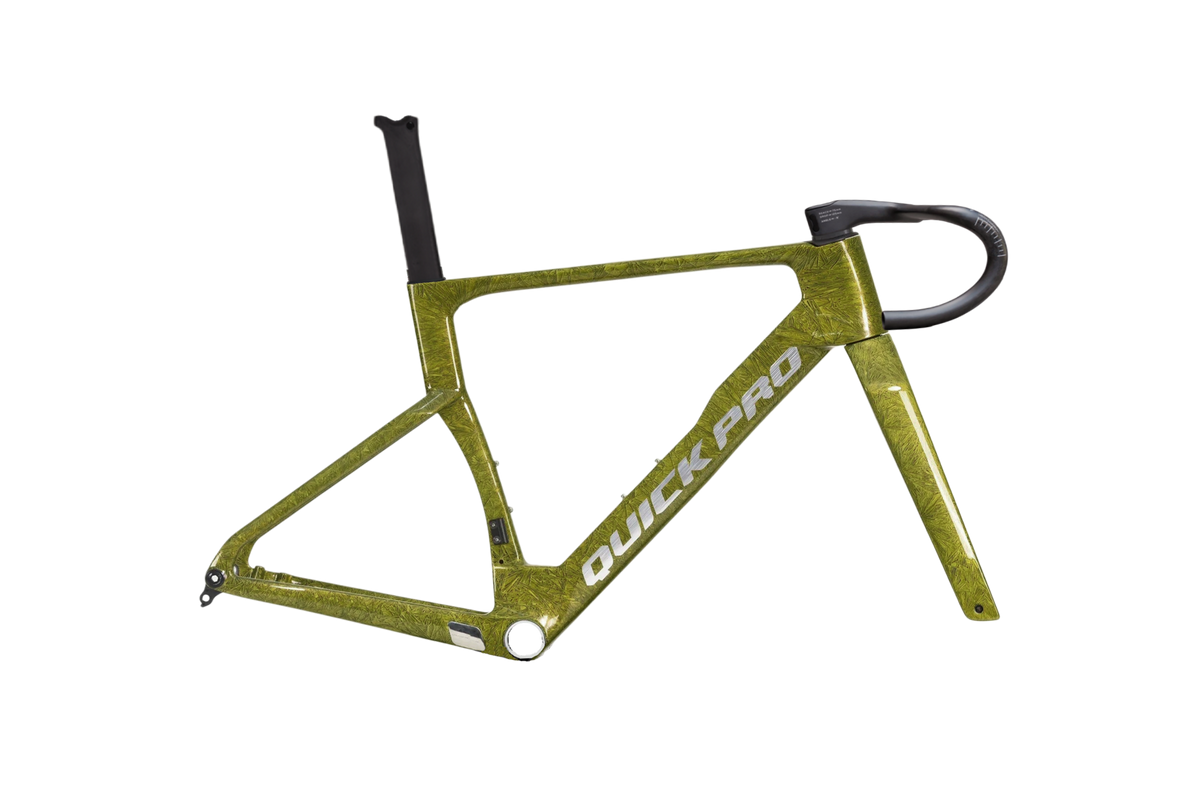

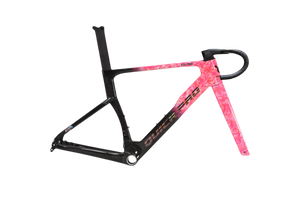

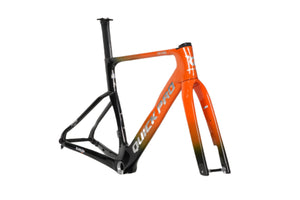

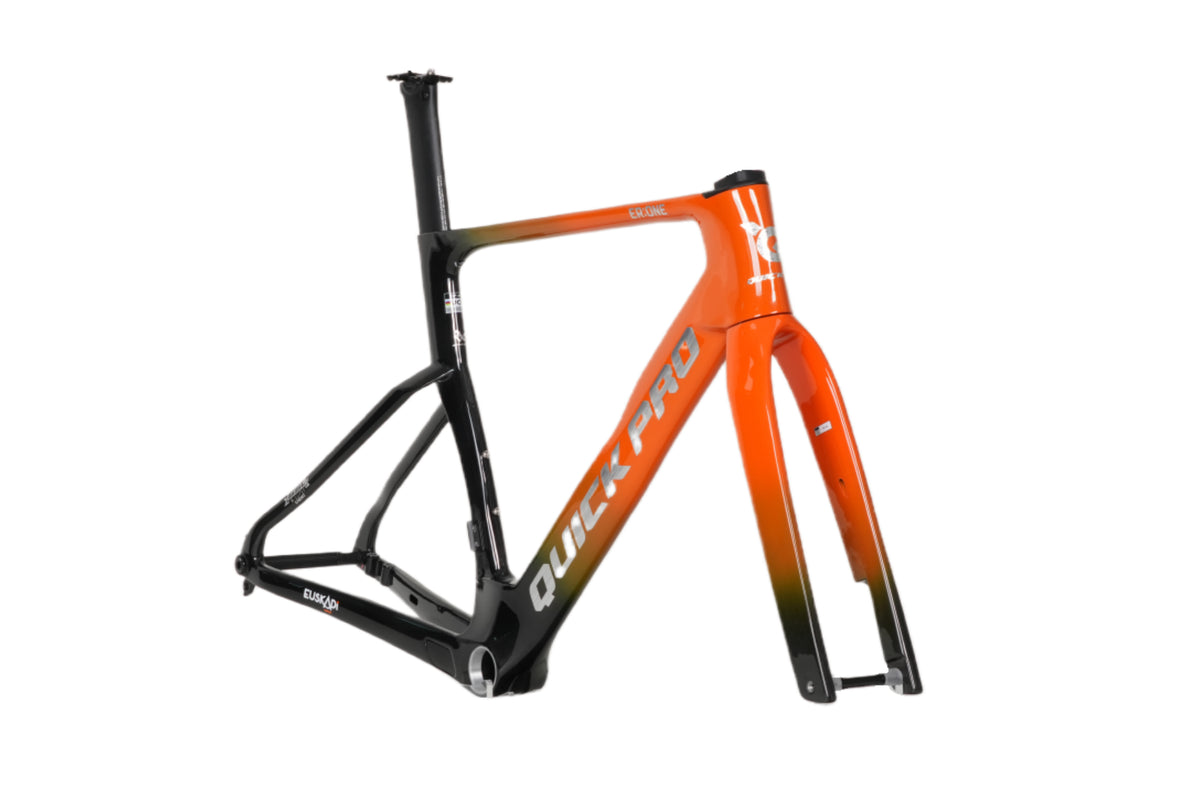

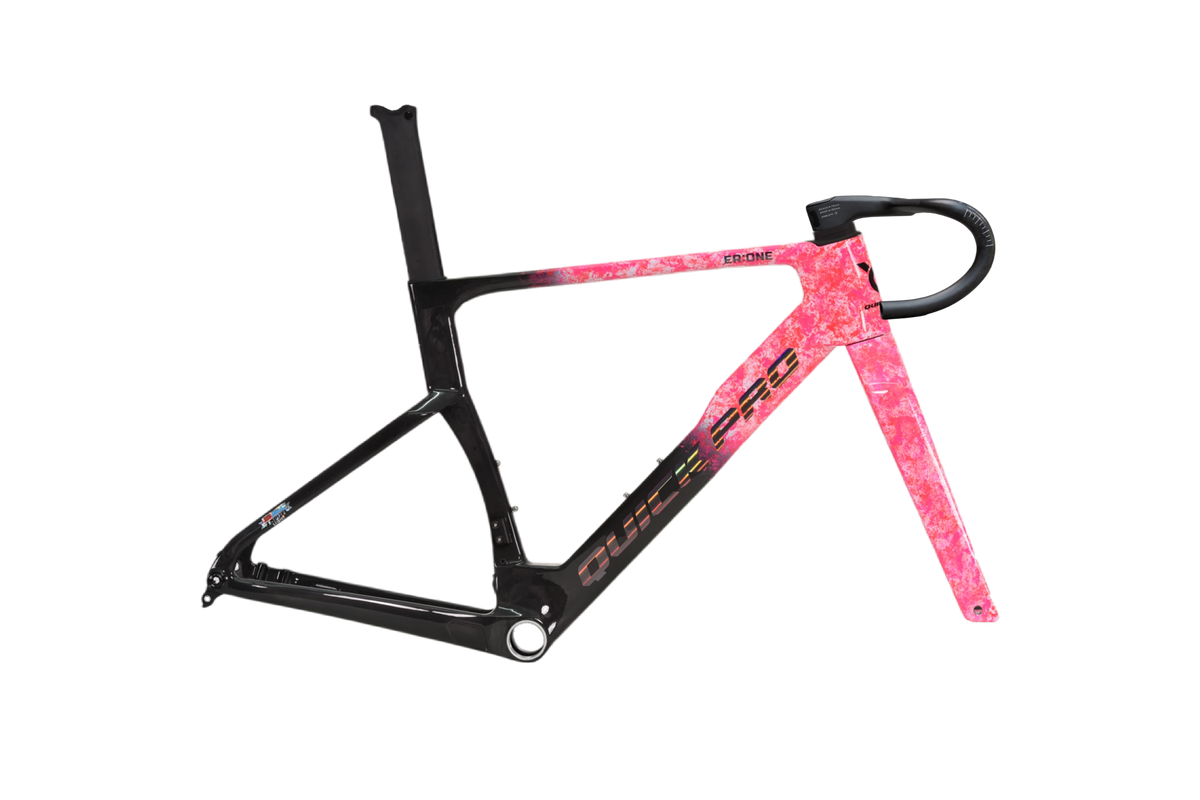

Quick Pro ER:ONE Frameset - Custom Color
Quick Pro ER:ONE Frameset - Custom Color
Quick Pro ER:ONE Frameset - Custom Color
Quick Pro ER:ONE Frameset - Custom Color
Quick Pro ER:ONE Frameset - Custom Color
Quick Pro ER:ONE Frameset - Custom Color
Quick Pro ER:ONE Frameset - Custom Color
Quick Pro ER:ONE Frameset - Custom Color
Vendor:Quick Pro

Quick Pro ER:ONE Frameset - Custom Color

Sale price €2.499,00

The ER:ONE is Quick Pro's aero specialist — Engineered for those who demand pure speed and explosive power.

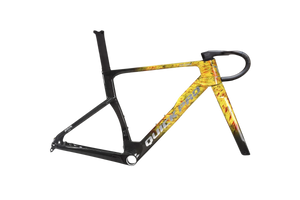

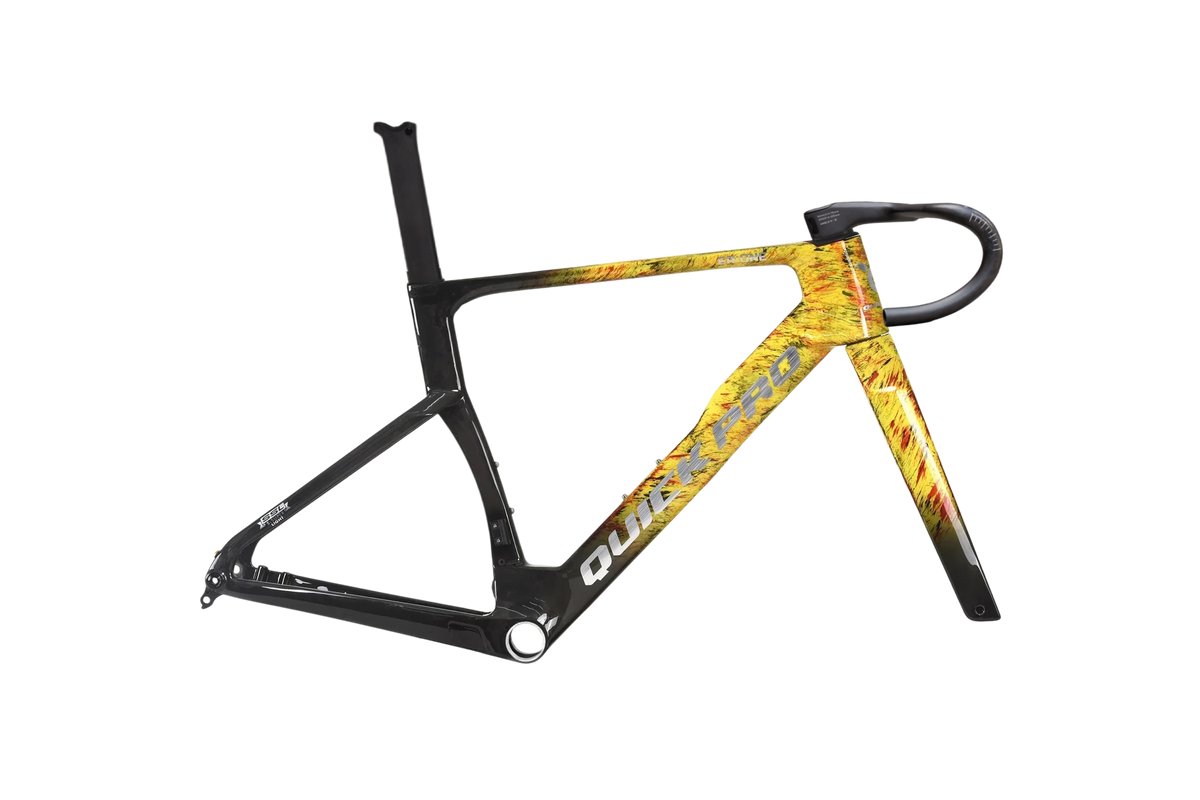

Color: Sun Blast
Size: XS
Pre-order - usually fulfilled in 3 weeks:
  • Production time: 3–5 business days
  • Estimated delivery to our warehouse: 2–3 weeks

Pickup currently unavailable at RAZL Groningen NL Warehouse

Available locations

Quick Pro ER:ONE Frameset - Custom Color

Quick Pro ER:ONE Frameset - Custom Color

Color: Sun BlastSize: XS

  • RAZL Groningen NL Warehouse

    Pickup currently unavailable

    Narvikweg 16, C, 9723 TV Groningen, Netherlands

    +31682099999
    Get direction
Fast and secure delivery
14 days return
2-Year Warranty
From the manufacturer:

Formed by Science, Proven by Racing

The ER:ONE is a genuine leap in structural engineering—pursuing low weight, high stiffness, and minimal drag with exacting precision at every stage. Each carbon ply, resin ratio, and tube profile is tuned and refined through endless simulation and testing, with every parameter verified from layup design to stress analysis. The result: a frame that delivers efficiency, durability, and speed consistently under real racing conditions.

KEY FEATURES

Ultralight & Ultra-Stiff
Construction

Constructed using True Full Monocoque technology with zero post-mould bonding, the ER:ONE weighs approximately 840g (Size M). The T1100 + M65 high-modulus carbon layup provides an exceptional stiffness-to-weight ratio, ensuring every watt of power translates into forward motion.

Advanced Aerodynamic
Engineering

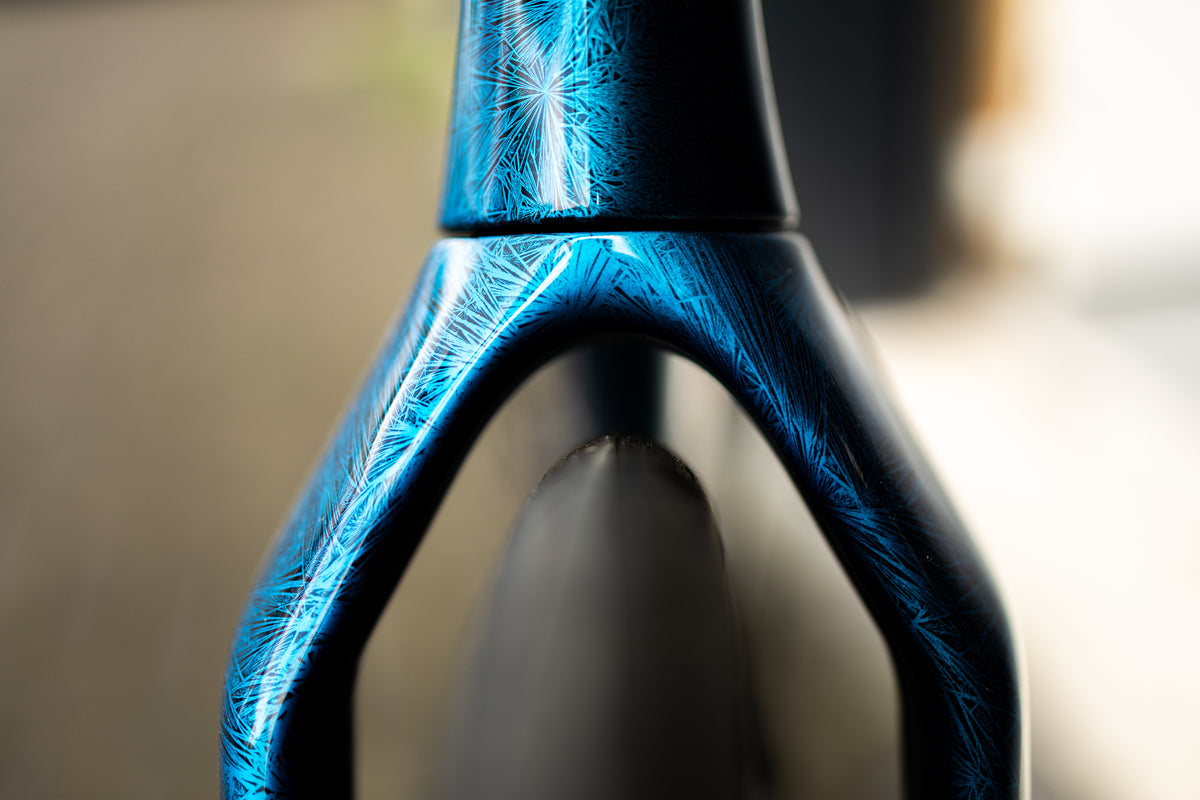

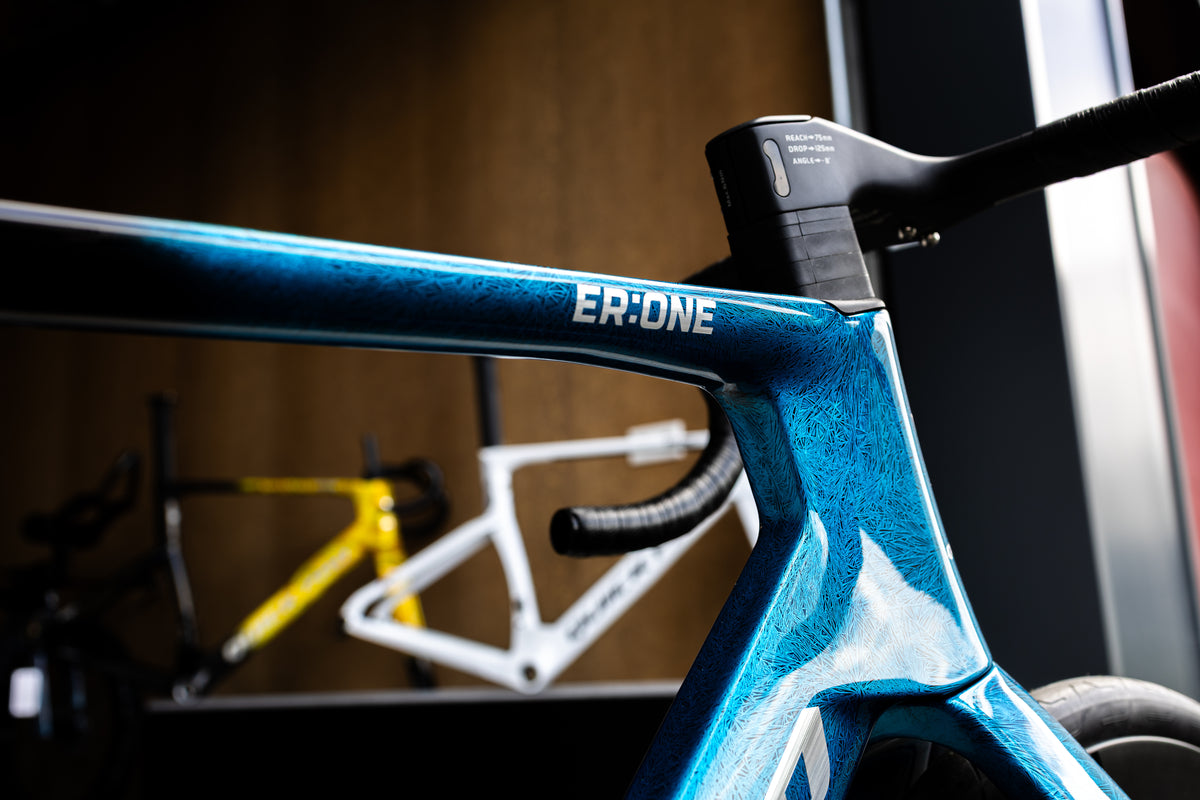

CFD-optimized deep-section head tube and down tube slice through the wind, while the wide-stance fork design keeps blades out of turbulent air from the front wheel. The sculptured 52/52mm head tube minimizes frontal area while maximizing stiffness for superior low-drag performance.

UCI Pro-
Proven Performance

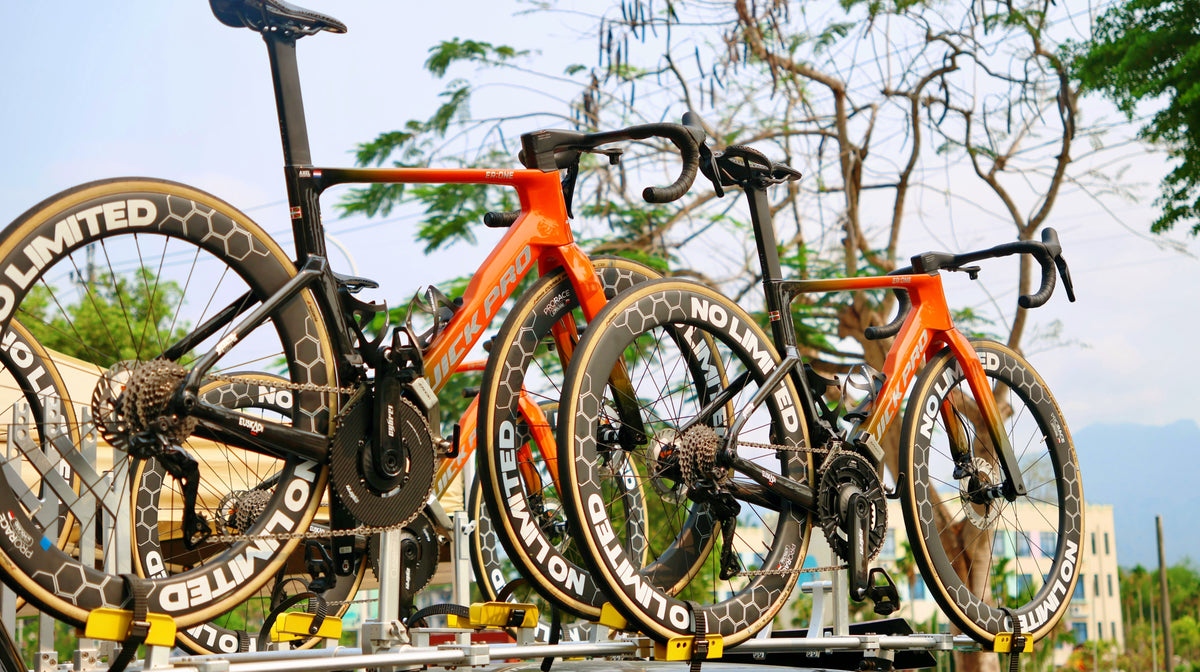

Tested and raced by the Quick Continental Team, the ER:ONE has secured multiple victories in international UCI races, including the Tour of Hainan. This frameset is UCI Approved, meeting the highest standards for professional competition.
    • ModelER:ONE
    • ForkWide
    • MaterialT1100 & M65 Modulus Carbon
    • ConstructionMonolith One Piece
    • Frame weight (M size)840g
    • Headset bearing52x52mm
    • Tire clearance700×32c
    • Thru-axleF/100×12mm R/142×12mm
    • Maximum rider weight120kg
    • Bottom bracketT47 Threaded (68mm)
    • HangerUDH
    • ModelCANWIN ZEPHYR SSL
    • Weight (400-100)288g ±3%
    • ConstructionOne-piece monocoque
    • Cable routingFully internal
    • Steerer tubes28.6mm
    • Flare Angle6.1°
    • Flare26.5mm
    • Reach75mm
    • Drop125mm
    • AccessoriesComputer mount
    • Offset0 or 20mm
    • Length360mm
    • Weight (w/ clamp)~175g
    • Max Torque10nm
    • Compatible railAlloy and carbon

Size & Geometry

Size Recomended height
XS (430) 160cm - 168cm
S (460) 166cm - 174cm
M (490) 172cm - 180cm
L (520) 178cm - 186cm
XL (550) 184cm - 192cm
XXL (584) 190cm+

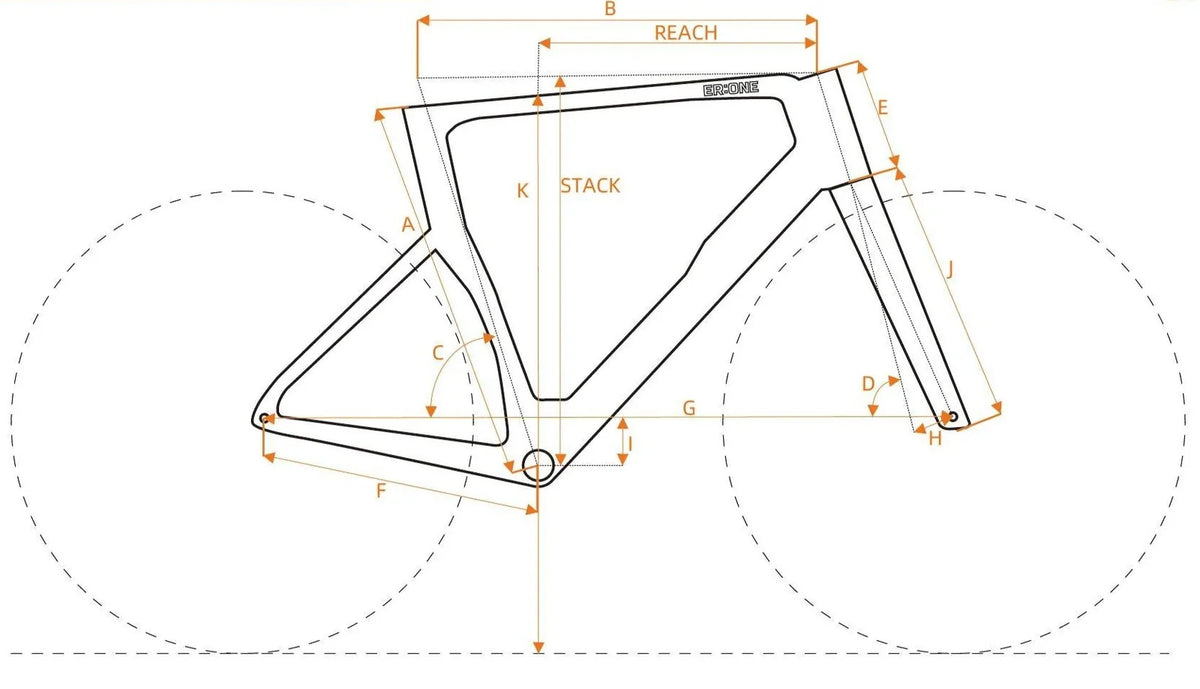

Ref Specification XS - 430 S - 460 M - 490 L - 520 XL - 550 XXL - 584
A Frame Size / Seat Tube Length (mm) 430 460 490 520 550 584
B Effective Top Tube Length (mm) 515 525 540 558 575 596
C Seat Tube Angle (°) 75 74.5 74 73.5 73.5 73
D Head Tube Angle (°) 70 71 72 73 73 73.5
E Head Tube Length (mm) 105 118 132 148 165 185
F Chainstay Length (mm) 408 408 408 408 408 408
G Wheelbase (mm) 985 985 987 991 1008 1019
H Fork Offset / Rake (mm) 45 45 45 45 45 45
I Bottom Bracket Drop (mm) 70 70 70 70 70 70
J Fork Length (mm) 373 373 373 373 373 373
K Standover Height (mm) 746 762 779 797 813 846
— Stack-to-Reach Ratio (STR) 1.33 1.37 1.39 1.41 1.41 1.43
— Reach (mm) 380 381 386 393 406 415
— Stack (mm) 505 521 538 556 572 593
