Quick Pro

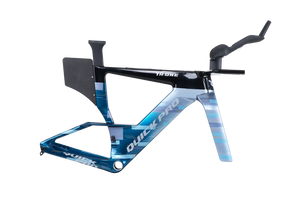

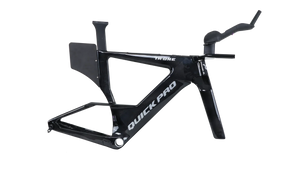

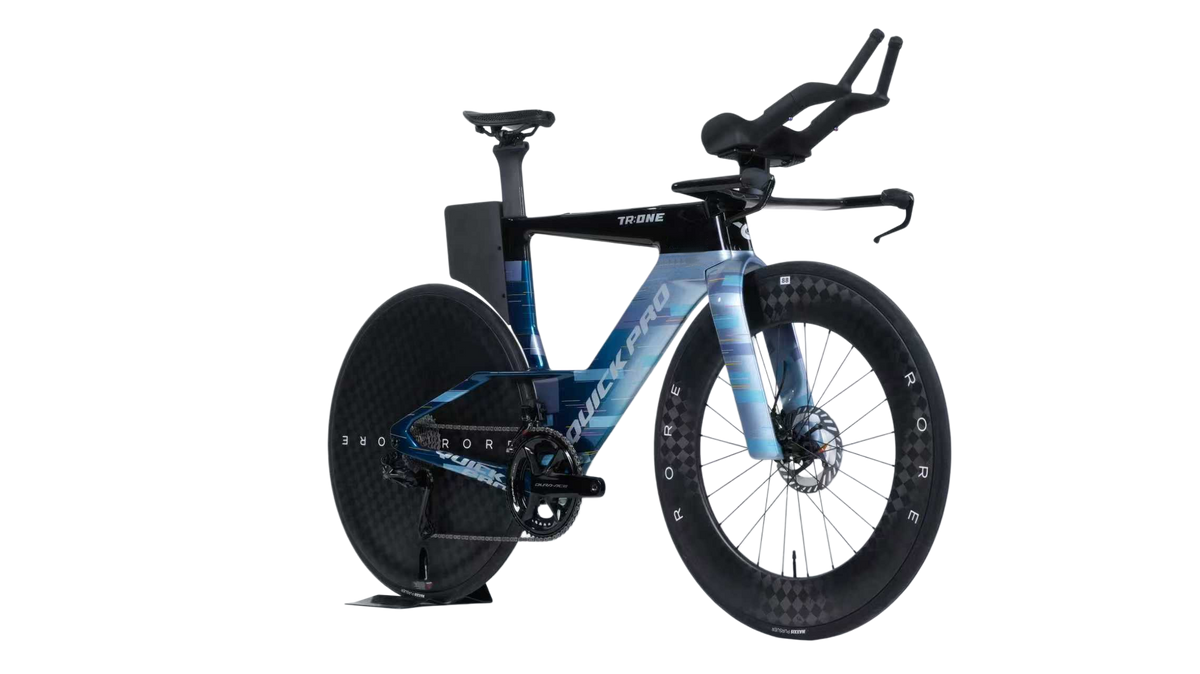

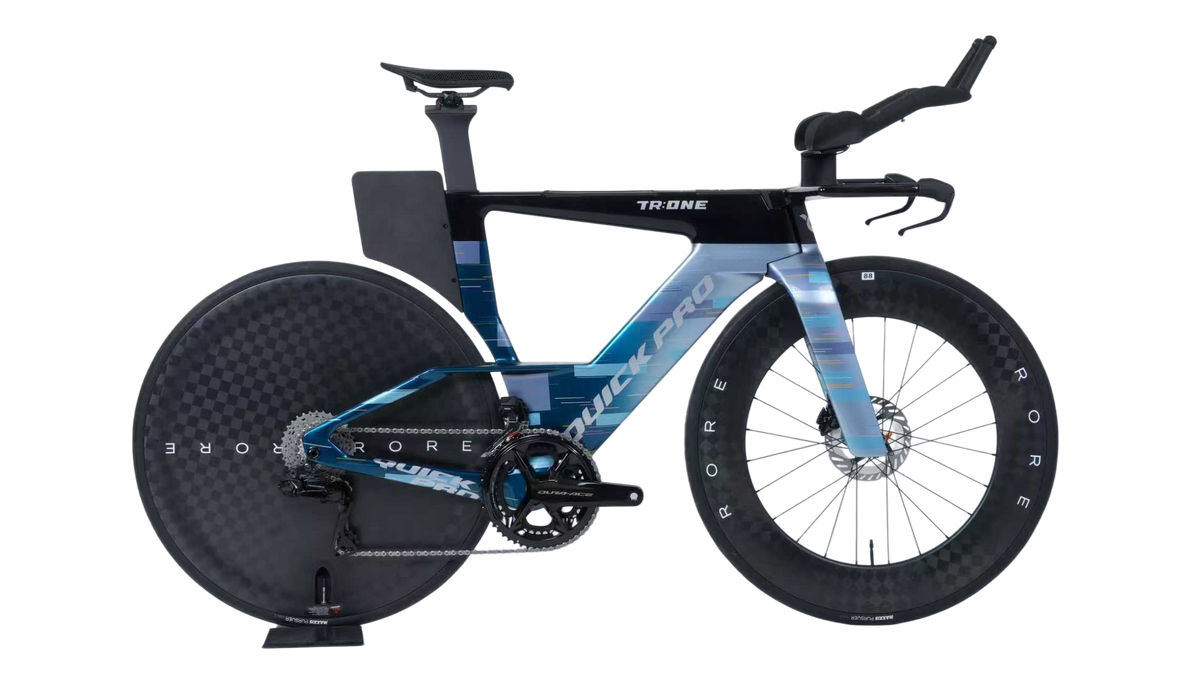

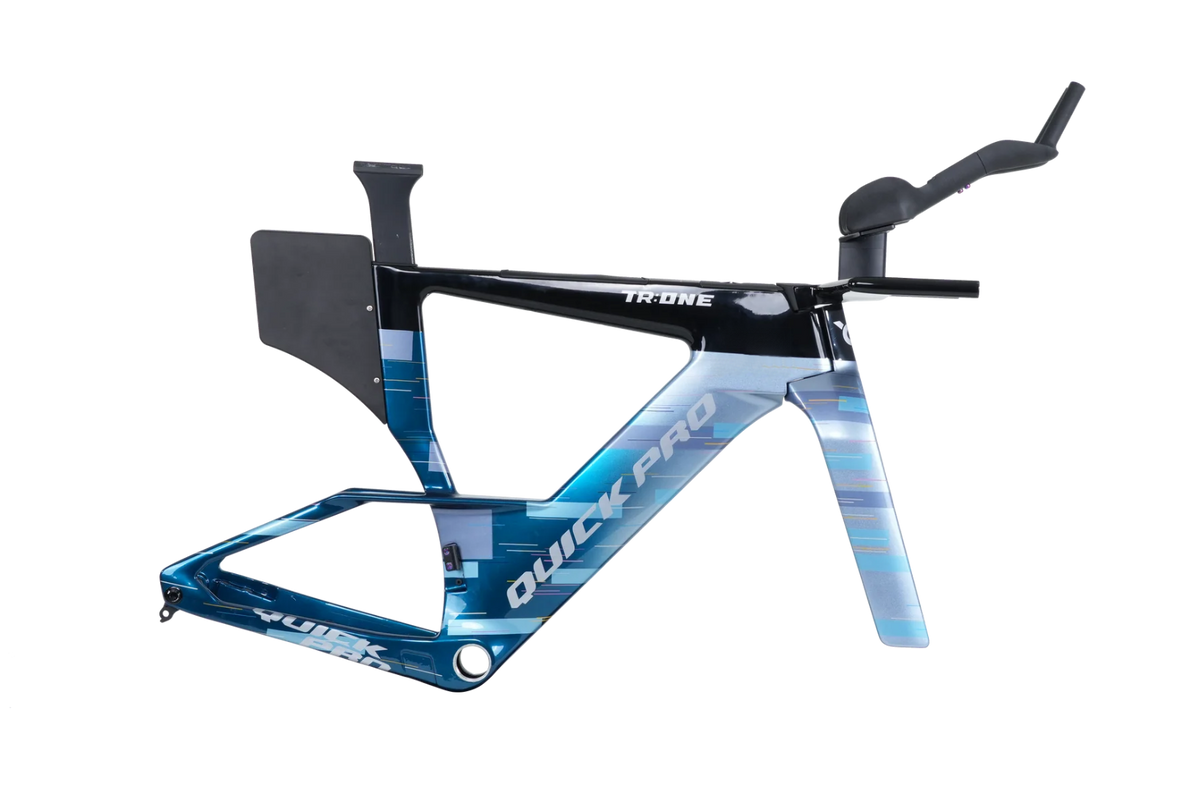

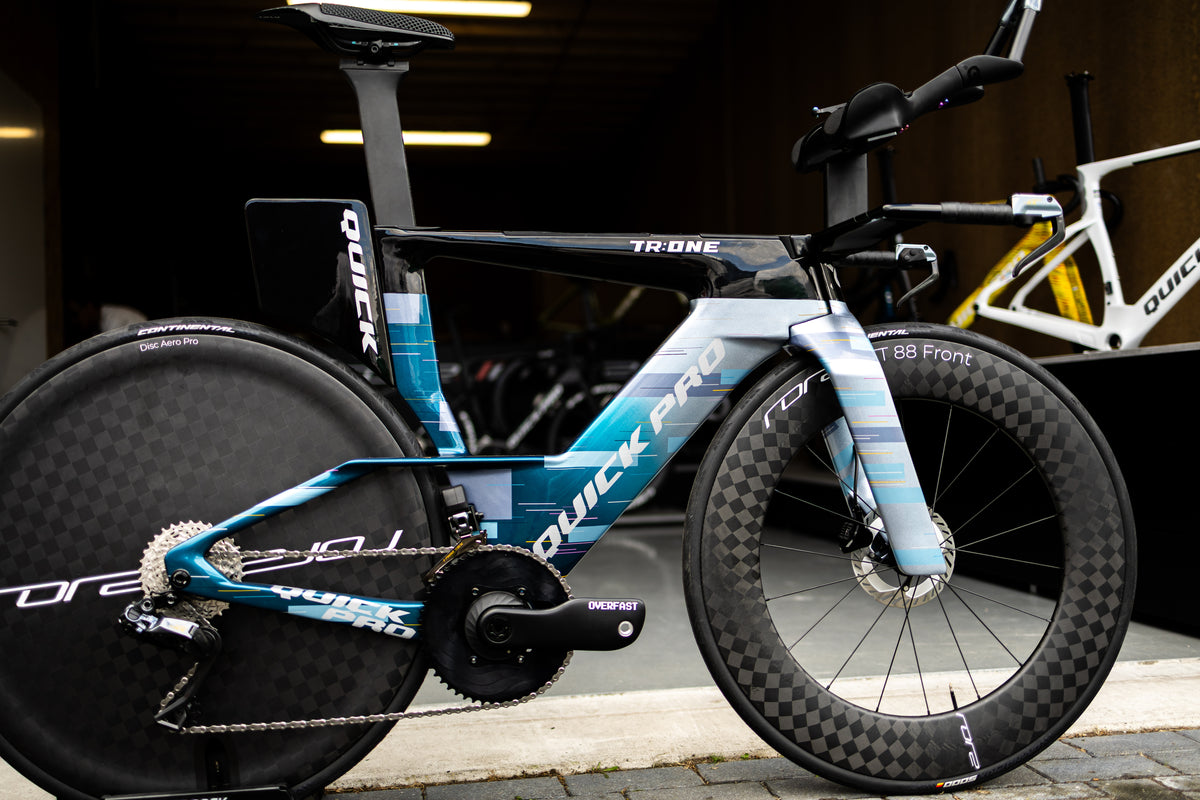

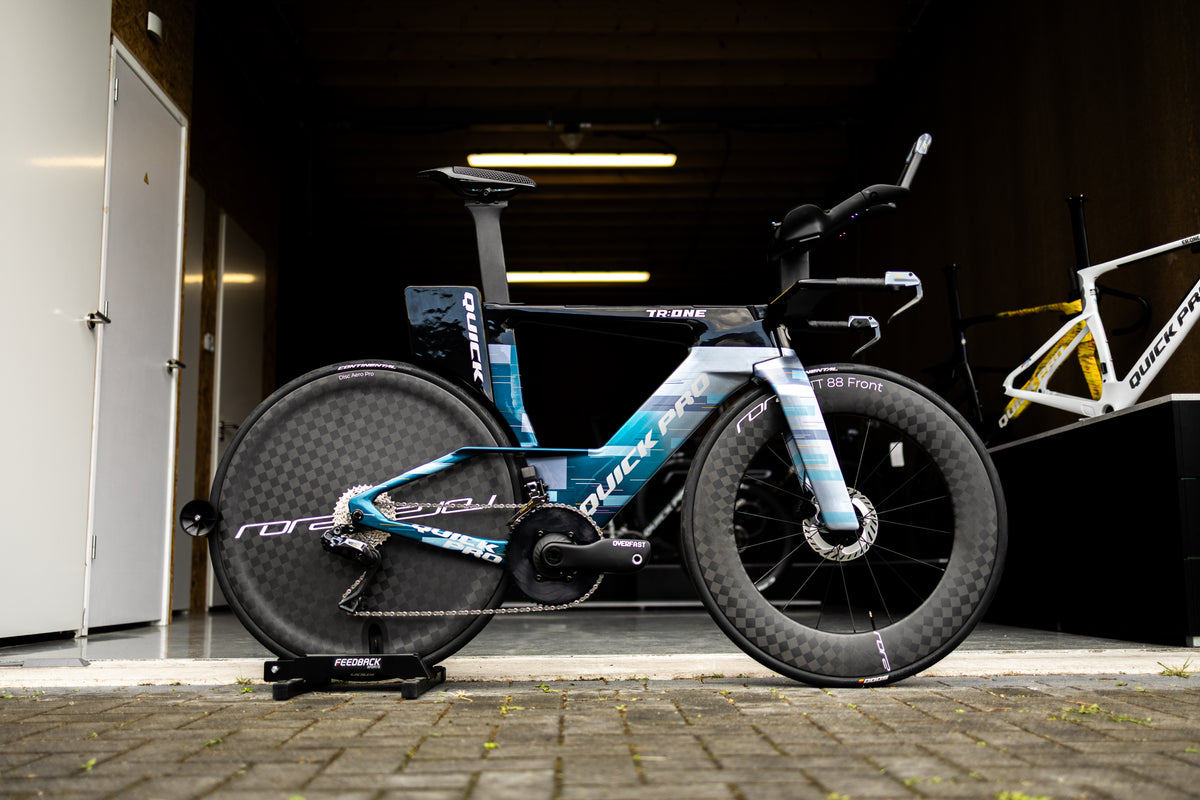

Quick Pro TR:ONE Frameset

€3.699,00

Triathlon / Long-Distance Frameset

The TR:ONE is engineered for the demands of triathlon from sprint distance to full Ironman.

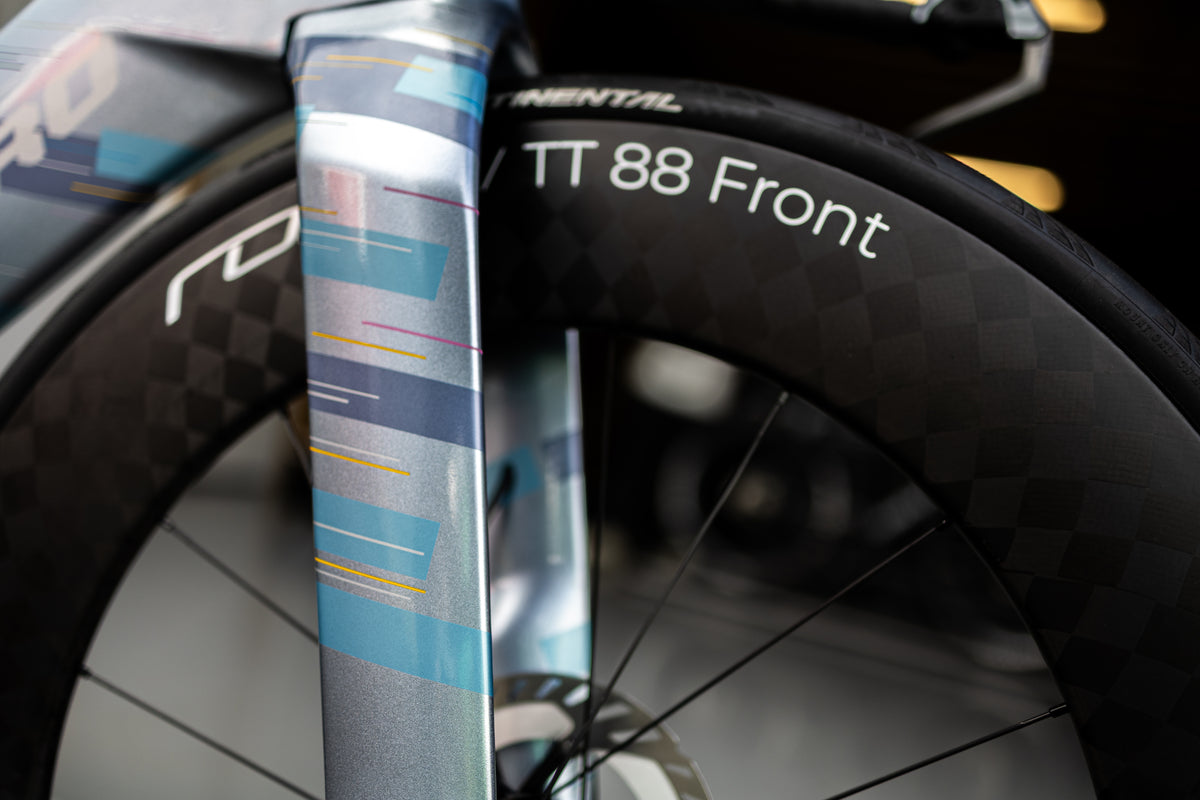

Color: RAZL Aurora Custom Color

Size: XS

XSSML

Low stock

Pickup available at RAZL Groningen NL Warehouse

Usually ready in 24 hours

Fast and secure delivery

14 days return

2-Year Warranty

From the manufacturer:

Triathlon / Long-Distance Frameset

The TR:ONE is engineered for the demands of triathlon from sprint distance to full Ironman. It combines aggressive aero positioning with the comfort and storage solutions needed to sustain power across a 180km bike leg and still leave you fresh for the marathon.

KEY FEATURES

Integrated Storage Solutions

Top tube mount for bento box, downtube bottle bosses, and rear hydration system compatibility

Adjustable Aero Cockpit Ready

Compatible with integrated base bar / clip-on systems with wide stack and reach adjustment range

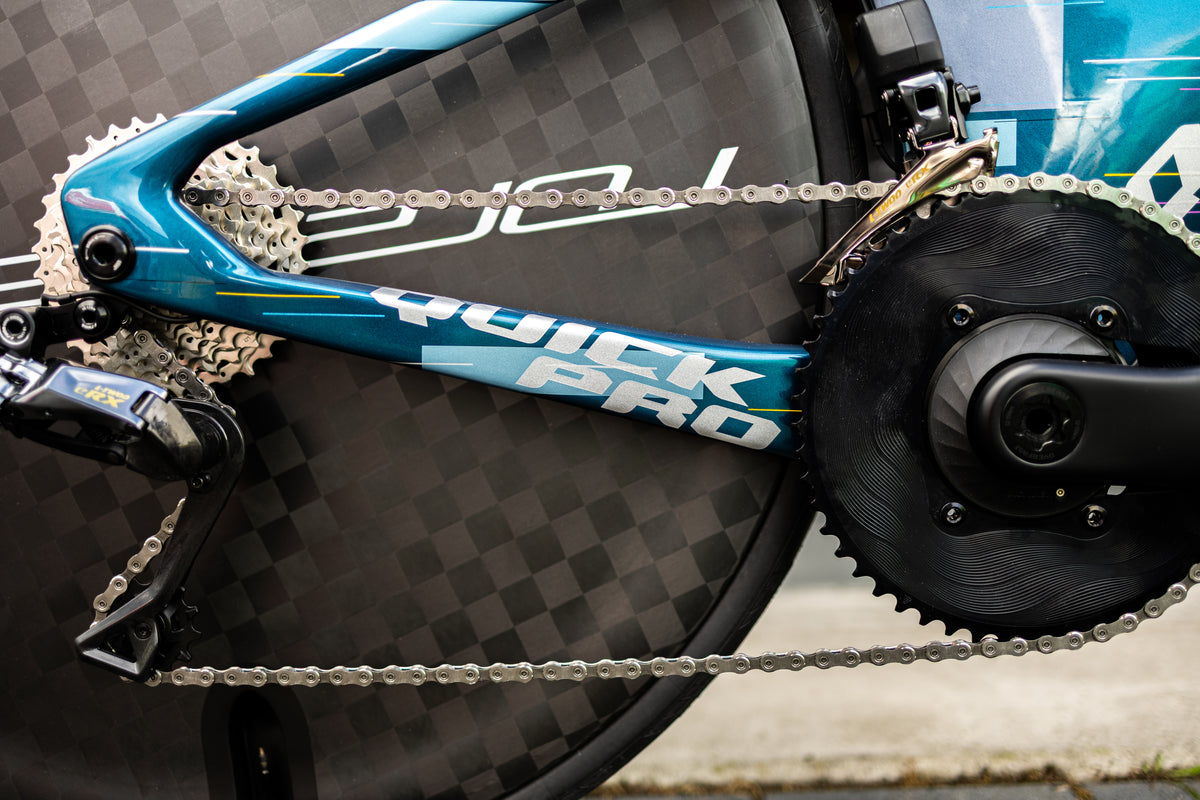

Modern Drivetrain Standards

The TR:ONE is built around modern performance standards: flatmount disc brakes for reliable all-condition stopping power, a T47 threaded 68mm bottom bracket for maximum power transfer and serviceabilit.

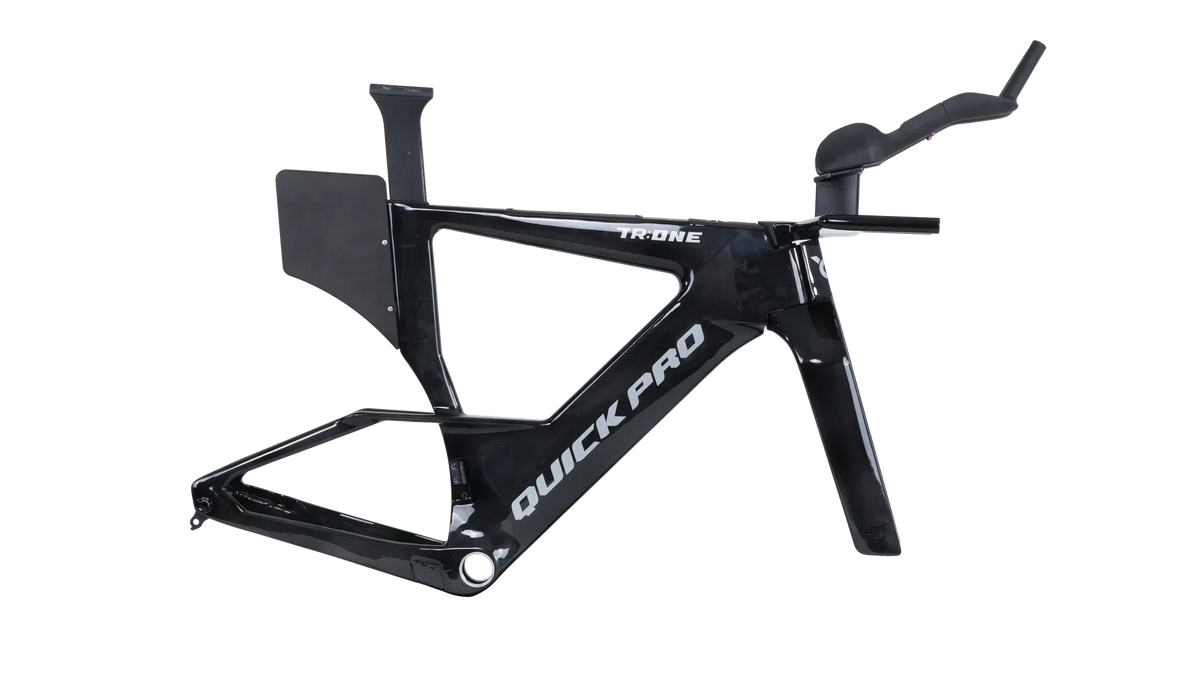

Frame & Fork

ModelTR:ONE
MaterialT1100 & M65 High-Modulus Carbon
ConstructionFull Monocoque
Frame weight (M size)~1219g ±5% (excluding paint & accessories)
Fork weight (M size)~574g ±5% (excluding paint & accessories)
Headset bearing52x52mm
Tire clearance700×32c
Thru-axleF/100×12mm R/142×12mm
Maximum rider weight120kg
Bottom bracketT47 Threaded (68mm)
HangerUDH

Handlebar

ModelTR:ONE Cockpit
Weight (with Base Bar)134g
Base Bar weight38g
Weight (without Base Bar)96g
Adjustable Width160-190mm
Base Bar Width400mm
Adjustable Length370 / 380 / 390 / 400mm
Base Bar Length237.1mm

Seatpost

OffsetN/A
LengthN/A
Weight (w/ clamp)~185g
Max Torque10Nm
Compatible railAlloy and carbon

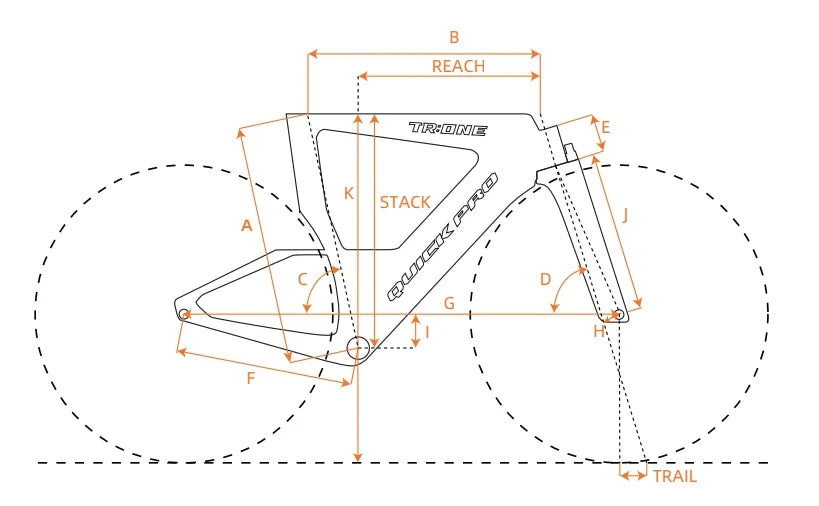

Size & Geometry

Size	Recomended height
XS (528)	155cm - 165cm
S (537)	163cm - 175cm
M (557)	173cm - 185cm
L (572)	183cm - 196cm

Ref	Specification	XS - 528	S - 537	M - 557	L - 572
A	Frame Size / Seat Tube Length (mm)	528	537	557	572
B	Effective Top Tube Length (mm)	484	507	535	563
C	Seat Tube Angle (°)	78	78	78	78
D	Head Tube Angle (°)	72.5	73	73	73
E	Head Tube Length (mm)	62	72	88	108.5
F	Chainstay Length (mm)	410	410	410	410
G	Wheelbase (mm)	957	976	1006	1035
H	Fork Offset / Rake (mm)	40	40	40	40
I	Bottom Bracket Drop (mm)	78	78	78	78
J	Fork Length (mm)	370	370	370	370
K	Standover Height (mm)	785	794	809	829
—	Stack-to-Reach Ratio (STR)	1.38	1.33	1.29	1.26
—	Reach (mm)	374	395	420	444
—	Stack (mm)	516	525	540	560
—	Trail (mm)	68	64	64	64
